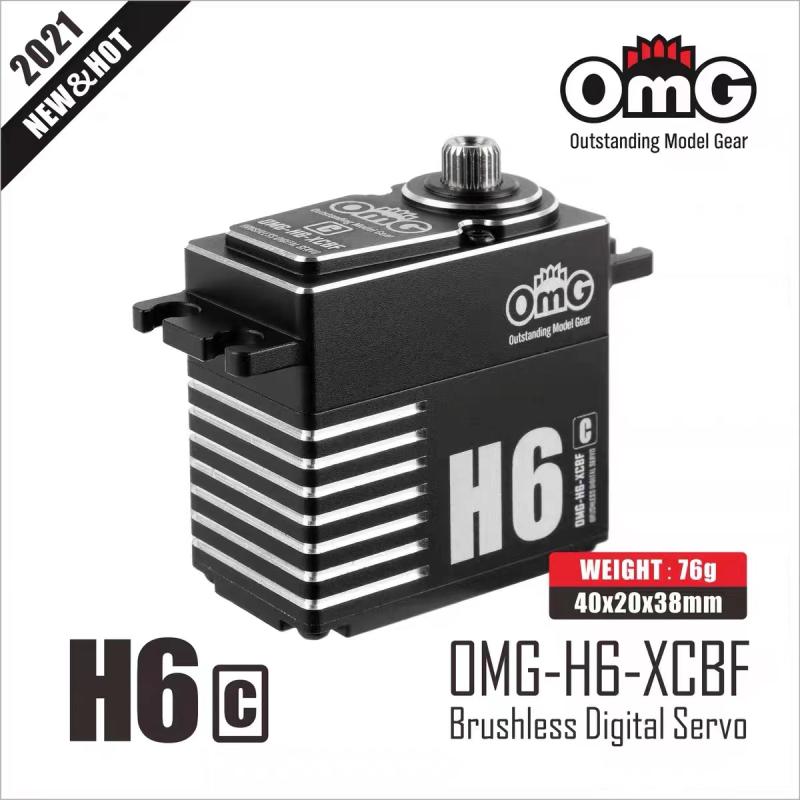

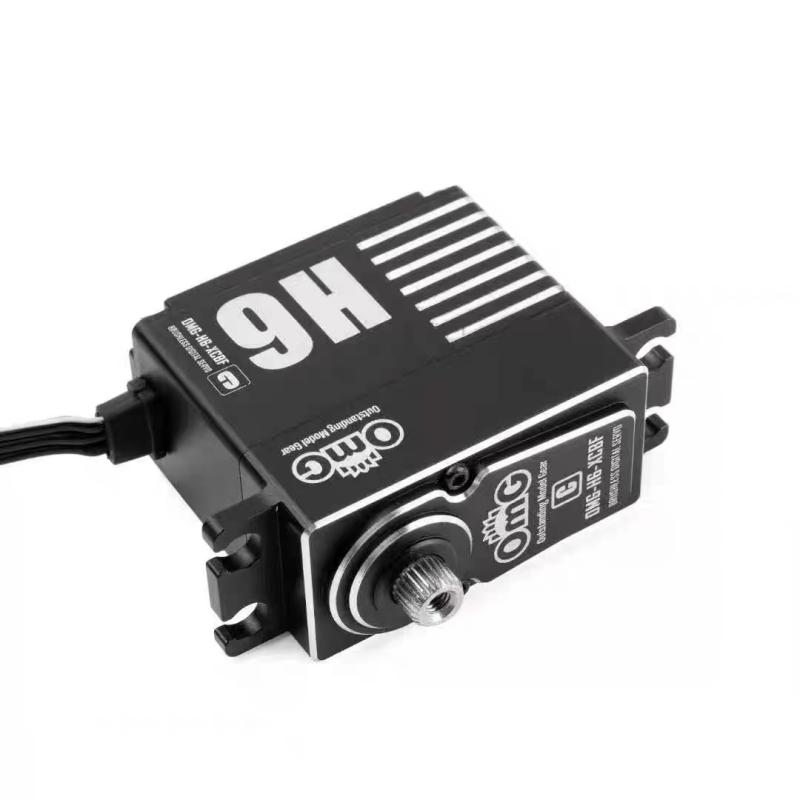

Standard Size Full Metal Brushless High Voltage Digital Servo For Swashplate OMG-H6-XCBF

    • Model: OMG-H6-XCBF
    • Colour:
    • Price: 488RMB
PRODUCT DETAILS

Item No. OMG-H6-XCBF

Operating voltage:4.8-8.4V

Operating speed:

6.0V-0.075sec/60°

7.4V-0.068sec/60°

8.4V-0.060sec/60°

Stall torque:

6.0V-28kgf.cm (389oz-in)

7.4V-32kgf.cm (444oz-in)

8.4V-36kgf.cm(500oz-in)

Gear material:Stainless steel

Horn gear spline:25T Φ5.9

Size:40x20x38mm(1.57×0.79×1.50in)

Case material:Full Metal

Weight:76g

Bearing:3BB

Motor type:Brushless

Operating temperature:-15℃~+70℃

Operating travel :≈180±10°

Frequency:1520uS

Refresh rate:333Hz

Pules width range :500-2500μsec

Dead band width:2μsec

Connector wire length:300mm

Waterproof level:Dust & Water Splash Resistacne
Programmable:No
