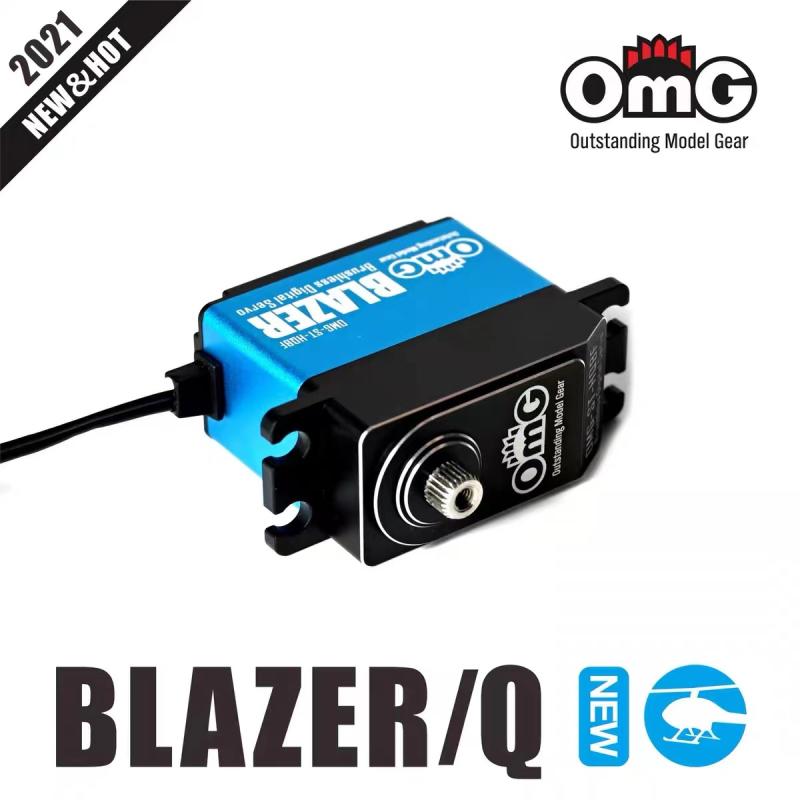

Standard Size Full Metal Brushless High Voltage Digital Servo For Tail OMG-ST-HQBF

    • Model: OMG-ST-HQBF
    • Colour:
    • Price: 388RMB
PRODUCT DETAILS

Item No. OMG-ST-HQBF

Operating voltage:4.8-8.4V

Operating speed:

7.4V-0.046sec/60°

8.4V-0.041sec/60°

Stall torque:

7.4V-17kgf.cm (236oz-in)

8.4V-18kgf.cm (250oz-in)

Gear material:Stainless steel

Horn gear spline:25T Φ5.9

Size:40x20x38mm(1.57×0.79×1.50in)

Case material:Full Metal

Weight:73g

Bearing:2BB

Motor type:Brushless

Operating temperature:-15℃~+70℃

Operating travel :≈180±10°

Frequency:760uS

Refresh rate:666Hz

Pules width range :500-2500μsec

Dead band width:2μsec

Connector wire length:300mm

Waterproof level:Dust & Water Splash Resistacne

Programmable:No
