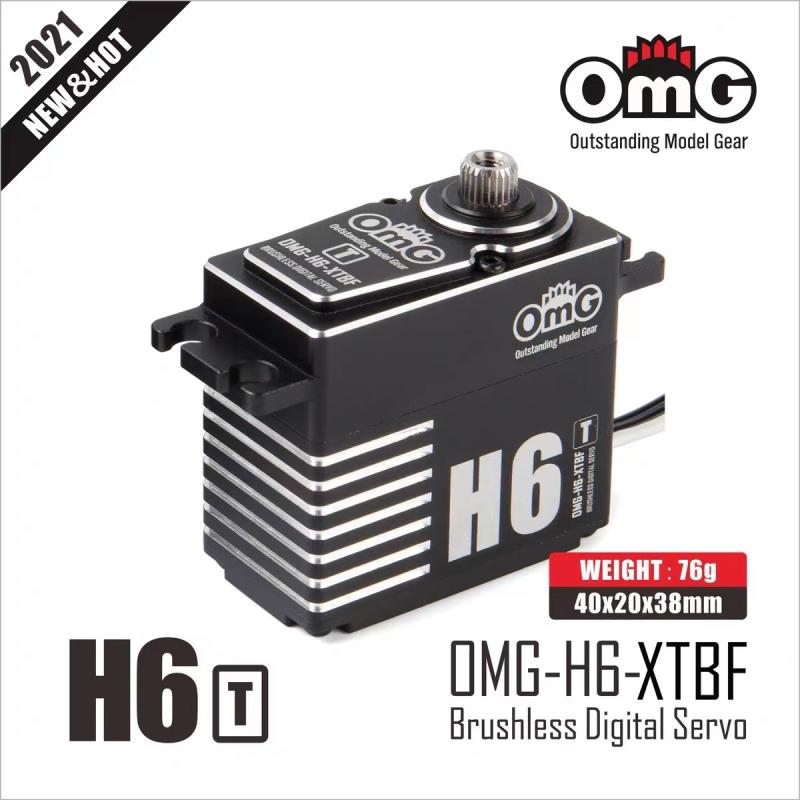

Standard Size Full Metal Brushless High Voltage Digital Servo For Tail OMG-H6-XTBF

    • Model: OMG-H6-XTBF
    • Colour:
    • Price: 488RMB
PRODUCT DETAILS

Item No. OMG-H6-XTBF

Operating voltage:4.8-8.4V

Operating speed:

6.0V-0.052sec/60°

7.4V-0.045sec/60°

8.4V-0.041sec/60°

Stall torque:

6.0V-19kgf.cm (264oz-in)

7.4V-20kgf.cm (278oz-in)

8.4V-22kgf.cm (306oz-in)

Gear material:Stainless steel

Horn gear spline:25T Φ5.9

Size:40x20x38mm(1.57×0.79×1.50in)

Case Material:Full Metal

Weight:76g

Bearing:3BB

Motor type:Brushless

Operating temperature:-15℃~+70℃

Operating travel :≈180±10°

Frequency:760μsec

Refresh rate:666Hz

Pules width range:500-2500μsec

Dead band width:2μsec

Connector wire length:300mm

Waterproof level:Dust & Water Splash Resistacne

Programmable:No
