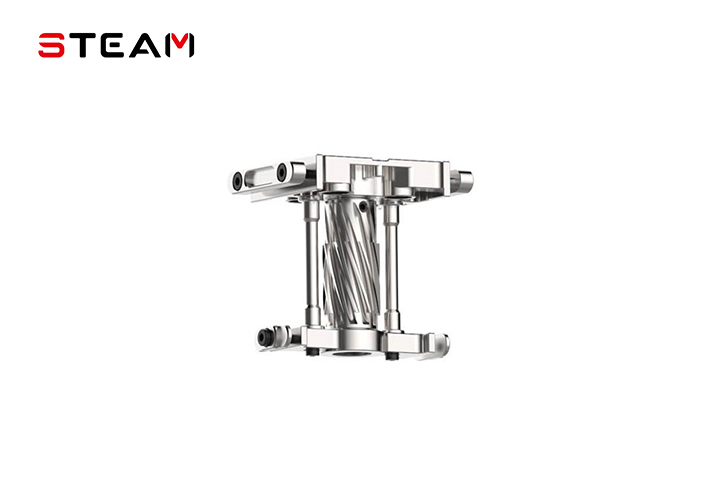

Steam 550/600 Metal Motor Housing Set MK6020
- Model: MK6020
- Colour:
- Price: 93RMB
Description:
Adopt 6061T6 aluminum alloy CNC molding processing. Suitable for MK550/MK600 helicopter model. Double bearing mount design reduces the vibration caused by motor shaft eccentricity. Integrated motor mount is convenient to adjust distance between motor and main gear. Equipped with static wire mounting holes.
Parameter:

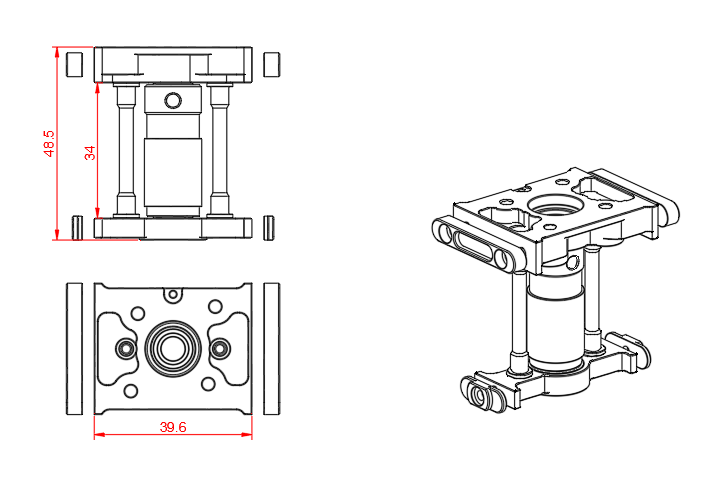

Motor mounting hole space: 25mm/30mm
Motor mounting hole: 3mm(If 4mm is used, self-reaming is required)
Specification:
Motor upper housing×1（40×33×9mm）17g
Motor lower housing×1（40×16×5mm）6.2g
High-speed bearing×2 (Φ8×Φ14×4mm) ×2
Connection aluminum column×2（Φ4.5×38.5mm）1.1g
Upper housing plate ×2（33×6×4mm）1.5g
Lower housing plate ×2（17×6×2.5mm）0.4g
M2.5×8mm Socket screw 0.5g ×6
M2.5×6mm Socket step screw 0.3g ×2
M2.5×6mm socket screw 0.3g ×2
Graphite washer×4(Φ4.3×Φ5.5×0.2mm)
