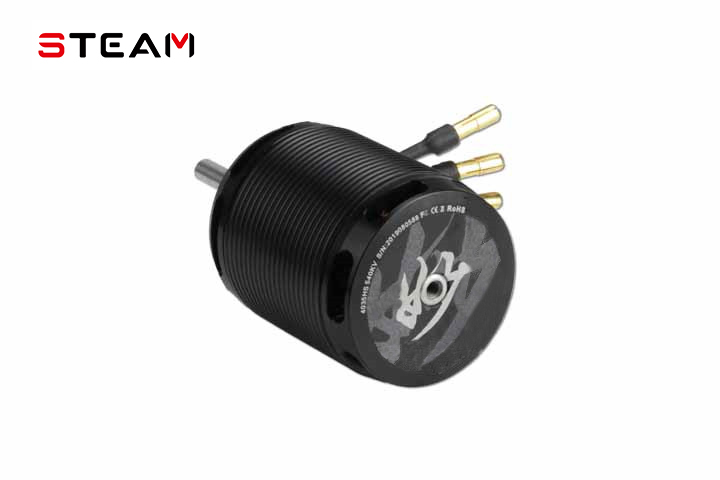

Steam 4035HS/6S/1090KV MK55023
- Model: MK55023
- Colour:
- Price: 513RMB
Description:
Suitable for 600 series helicopter model. The motor is manufactured to a high standard by STEAM with superb CNC turning and milling composite processing technology. The motor is equipped with an efficient active heat sink, which brings ultra-low temperature and effectively improves the energy conversion efficiency.

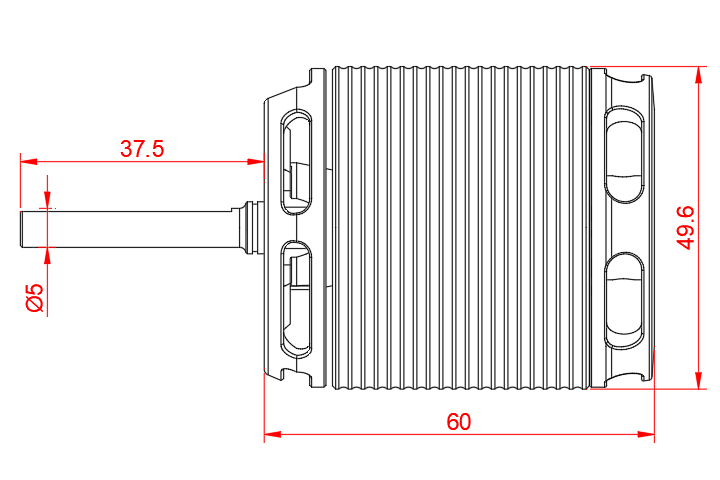

Installation dimensions：25mm/30mm
Parameter:
Stator Diameter 40mm
Stator Thickness 35mm
Motor KV 1090kv
No-Load Current (lo/10v) 9.4A
Motor Resistance (RM) 5.8mΩ
Max Continuous Current 150A
Max Continuous Power 3300W
Gear Shaft length 38mm
Outside Diameter 49.6mm
Shaft Diameter 6mm
Body Length 60mm
Overall Shaft Length 98mm
Max Peak Current 171A(2 seconds)
Max peak Power 3800W(2 seconds)
Max lipo cell 6S
Weight 415g
Specification:
1050KV Brushless motor×1
M3×8mm Socket screw×4
Φ5.5 Connected head×3
