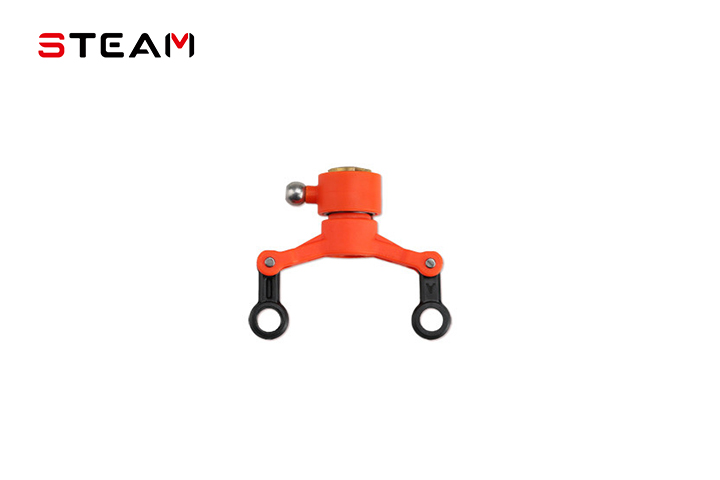

Steam 550/600 Tail Pitch Slider Link Assembly/Orange MK6068B
- Model: MK6068B
- Colour:
- Price: 19RMB
PRODUCT DETAILS
Description:
Suitable for MK550/600 helicopter model. Adopt streamlined design, mortise and tenon design. Effectively improve structural strength without increasing weight.
Related product number:
Metal tail rotor control arm set MK6021
Tail rotor control arm set/L arm/Orange MK6067B
Tail rotor control arm set/L arm/Green MK6067C
MK550/MK600 Metal double thrust L arm MK6015A
MK550/MK600 Double thrust tail control set MK6015B

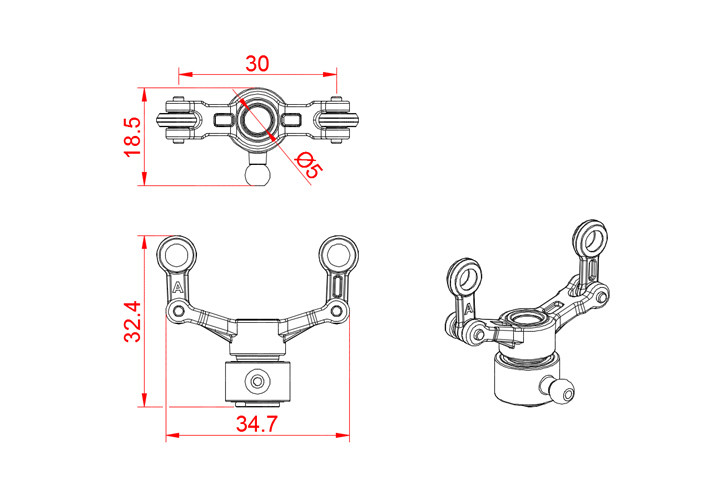

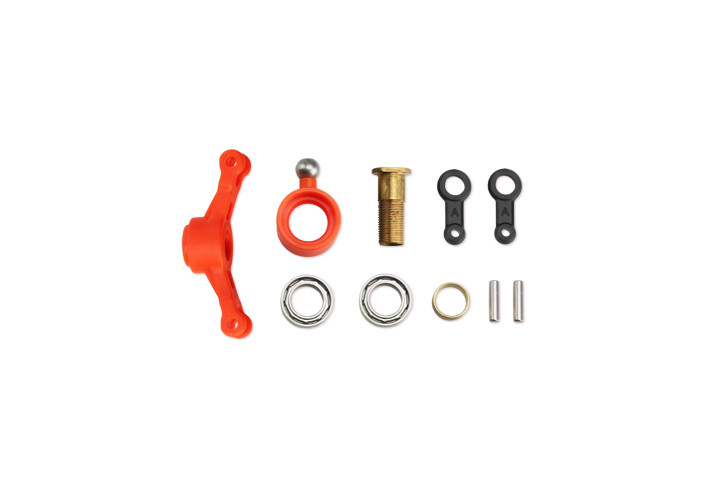

Specification:
“8” Type control arm×2（16.5×7.5×3mm）
Stainless pin（Φ2×8mm）×2
Tail shaft copper slide sleeve（Φ5×Φ8×16mm）×1
“T” Type control arm（M5×34.7×10.8mm）×1
Positioning ring（Φ6×Φ6×1mm）×1
Flange bearing（Φ6×10×2.5mm）×2
Φ4.75 Linkage ball×1
