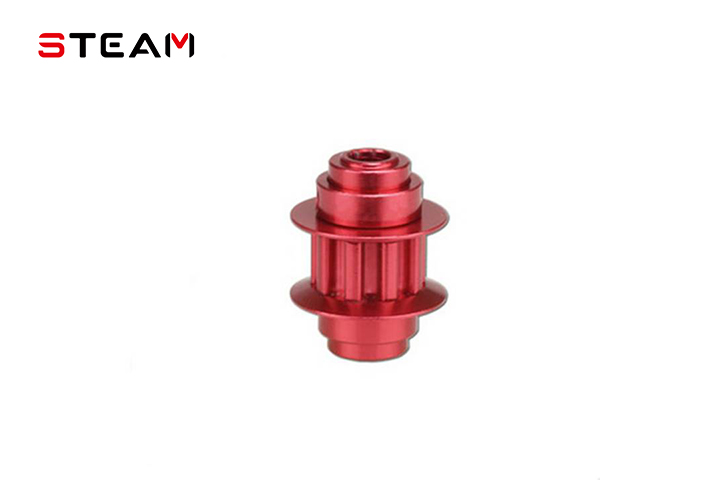

Steam 550/600 Metal Tail Gear 9T/Red MK5502

    • Model: MK5502
    • Colour:
    • Price: 32RMB
PRODUCT DETAILS

Description:

Suitable for MK550 helicopter model. Adopt 6061T6 aluminum alloy CNC processing. Use with 600 belt 730XL MK6001 and 550 belt 638XL MK5501.

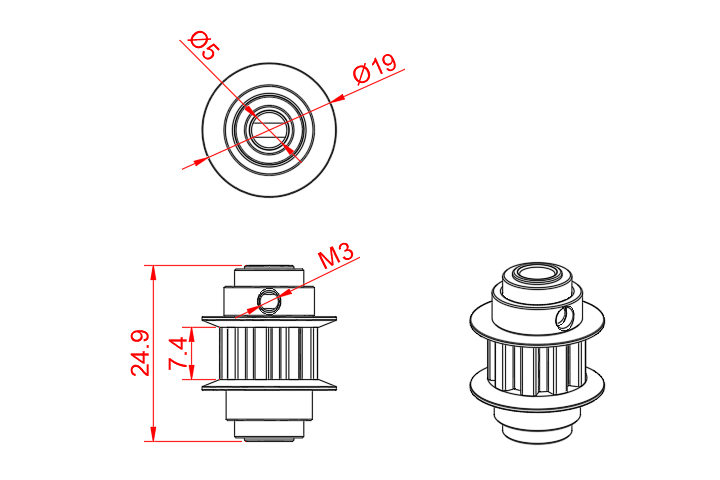

Size:

Inner size:5mm

Outer size:19mm

Length:24.9mm

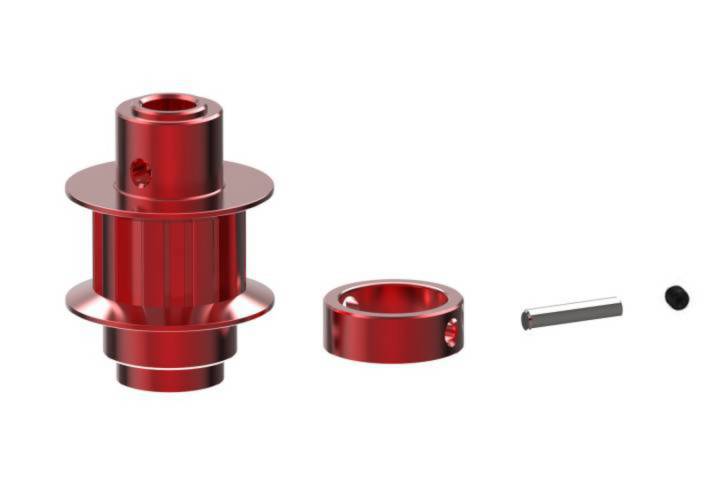

Specification:

Metal 9T tail gear×1（Φ5.0×Φ19×24.9mm）

Metal limited ring×1（Φ100×Φ13×4.5mm）

Metal limited pin×1（Φ2×10.0mm）

M3 Set screw×1（M3×3mm）
