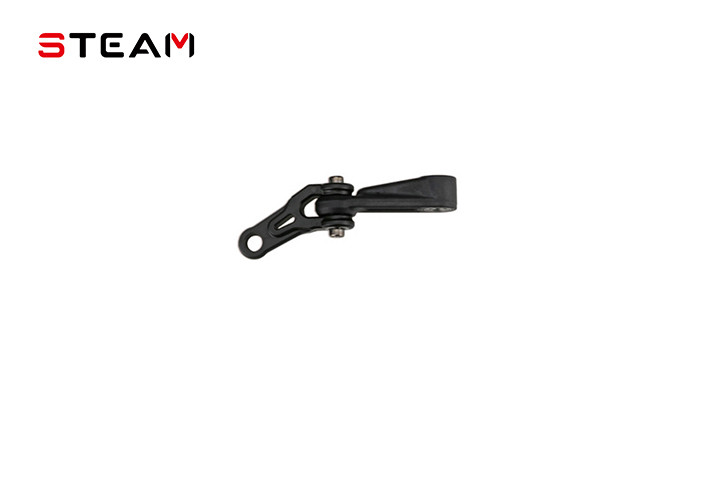

Steam 550/600 Control Arm/Linkage Rod MK6056B

    • Model: MK6056B
    • Colour:
    • Price: 20RMB
PRODUCT DETAILS

Description：

Use high strength reinforced plastic for injection molding. Suitable for MK550/MK600 helicopter model. Adopt streamline design and Mortise and tenon design. Effectively improve structural strength without increasing weight.

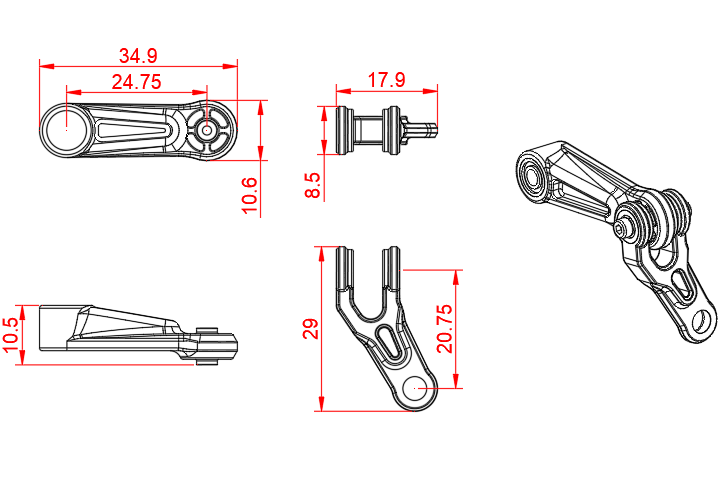

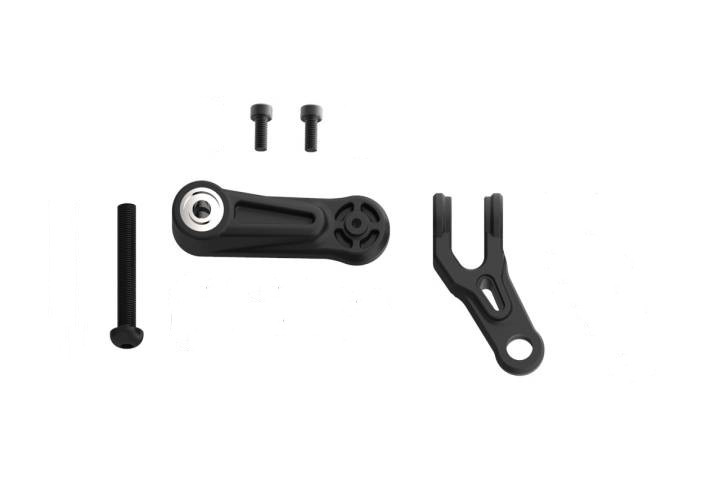

Specification:

Washout control arm×1 (35×10.6×10.5mm)

Washout arm×1 (29×17.9×8.5mm)

Bearing×2(Φ3×Φ7×3mm)

Bearing collar×1(Φ3×Φ5×2mm)

Bearing×2(Φ2×Φ5×2.3mm)

M2×5mm Socket screw×2

M3×20mm Socket button head screw×1
