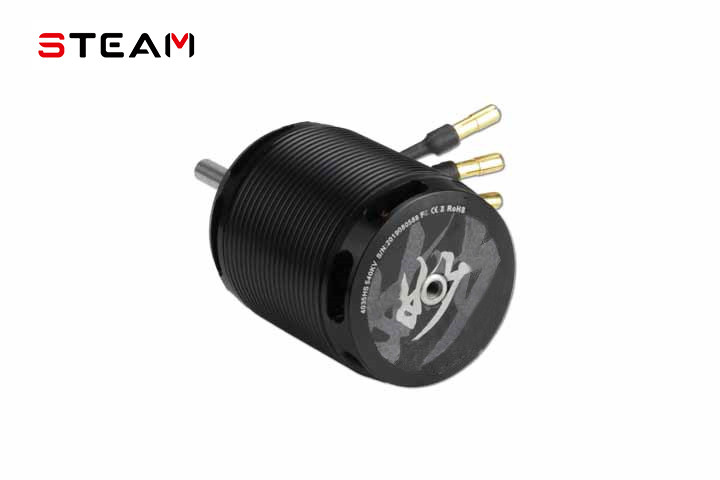

Steam 4035HS/12S/540KV MK6079
- Model: MK6079
- Colour:
- Price: 513RMB
Description:
Suitable for 600 series helicopter model. The motor is manufactured to a high standard by STEAM with superb CNC turning and milling composite processing technology. The motor is equipped with an efficient active heat sink, which brings ultra-low temperature and effectively improves the energy conversion efficiency.
Installation size:25mm/30mm
Parameter:
Stator Diameter 40mm
Stator Thickness 35mm
Motor KV 540kv
No-Load Current (lo/10v) 4.3A
Motor Resistance (RM) 18mΩ
Max Continuous Current 85A
Max Continuous Power 3500W
Weight 415g

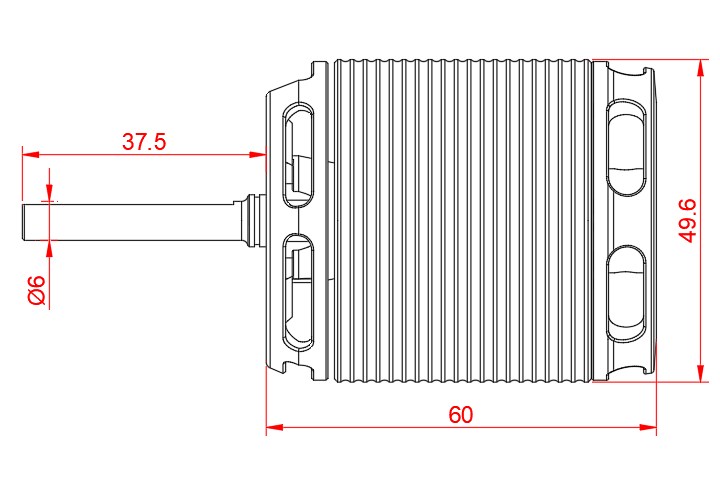

Gear Shaft length 38mm
Outside Diameter 49.6mm
Shaft Diameter 6mm
Body Length 60mm
Overall Shaft Length 98mm
Max Peak Current 95A(2 seconds)
Max peak Power 4300W(2 seconds)
Motor Timing 5deg to 15deg
Max lipo cell 12S
Specification:
540KV Brushless motor×1
M3×8mm Socket screw×4
Φ5.5 Connected head×3
Heat shrinkable tube×3
