Description：

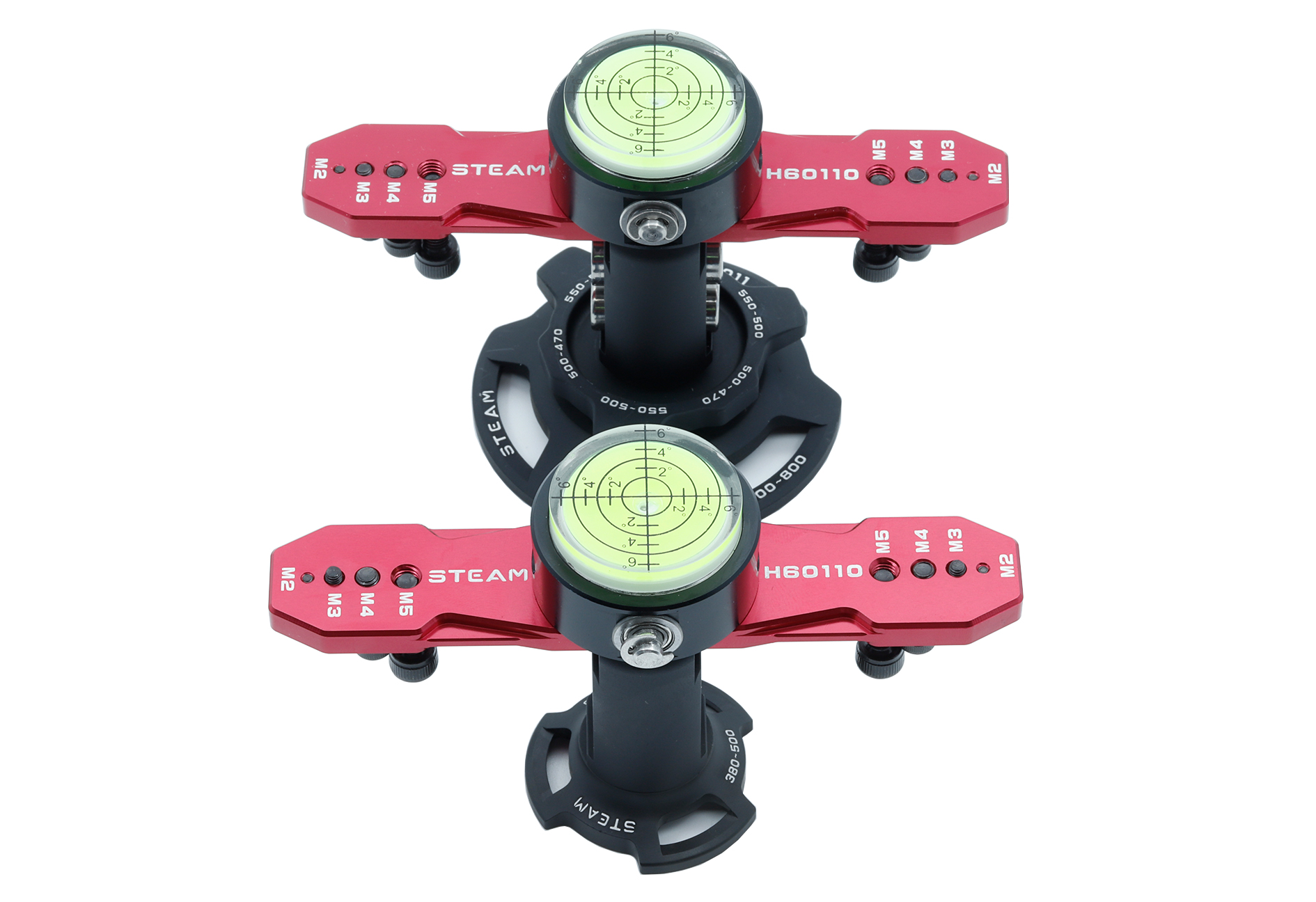

Steam Terminator Adjusting Tool Suit, suitable for 250～800 helicopter model. It has the functions of horizontal adjustment of swashplate, disassembly of feathering shaft and balance of blade.
1：Φ3/Φ4/Φ5/Φ6Φ8/Φ10/Φ12/Φ15MM four kinds of sleeve, eight kinds of shaft.
2：Φ19.5～Φ70MM swashplate, divided into two mount.
3：Φ:5/Φ6/Φ8/Φ9Φ10MM, five kinds of Five diameters for feathering shaft disassembly.

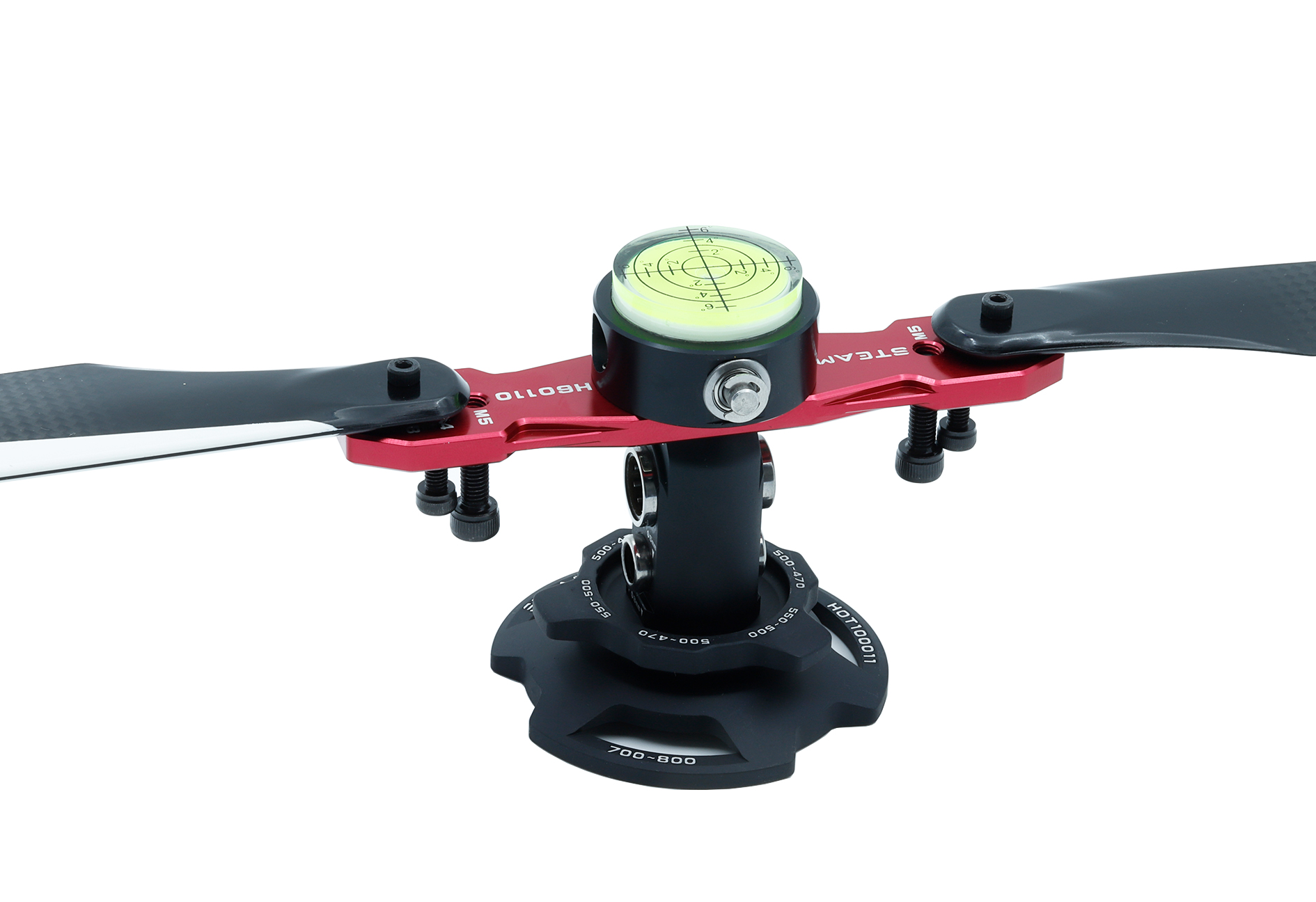

4：Blance diameter of mounting hole for rotor Φ2/Φ3/Φ4/Φ5MM, basically covering all 250 ~ 800 class blade.

Related Product Number：
Φ3/Φ5MM Swashplate Leveller Sleeve HOT100012
Φ4/Φ6MM Swashplate Leveller Sleeve HOT100013
Φ8/Φ10MM Swashplate Leveller Sleeve HOT100014
Φ12/Φ15MM Swashplate Leveller Sleeve HOT100015
470～800 Swashplate Leveller Mount HOT100011
250～500 Swashplate Leveller Mount HOT100010

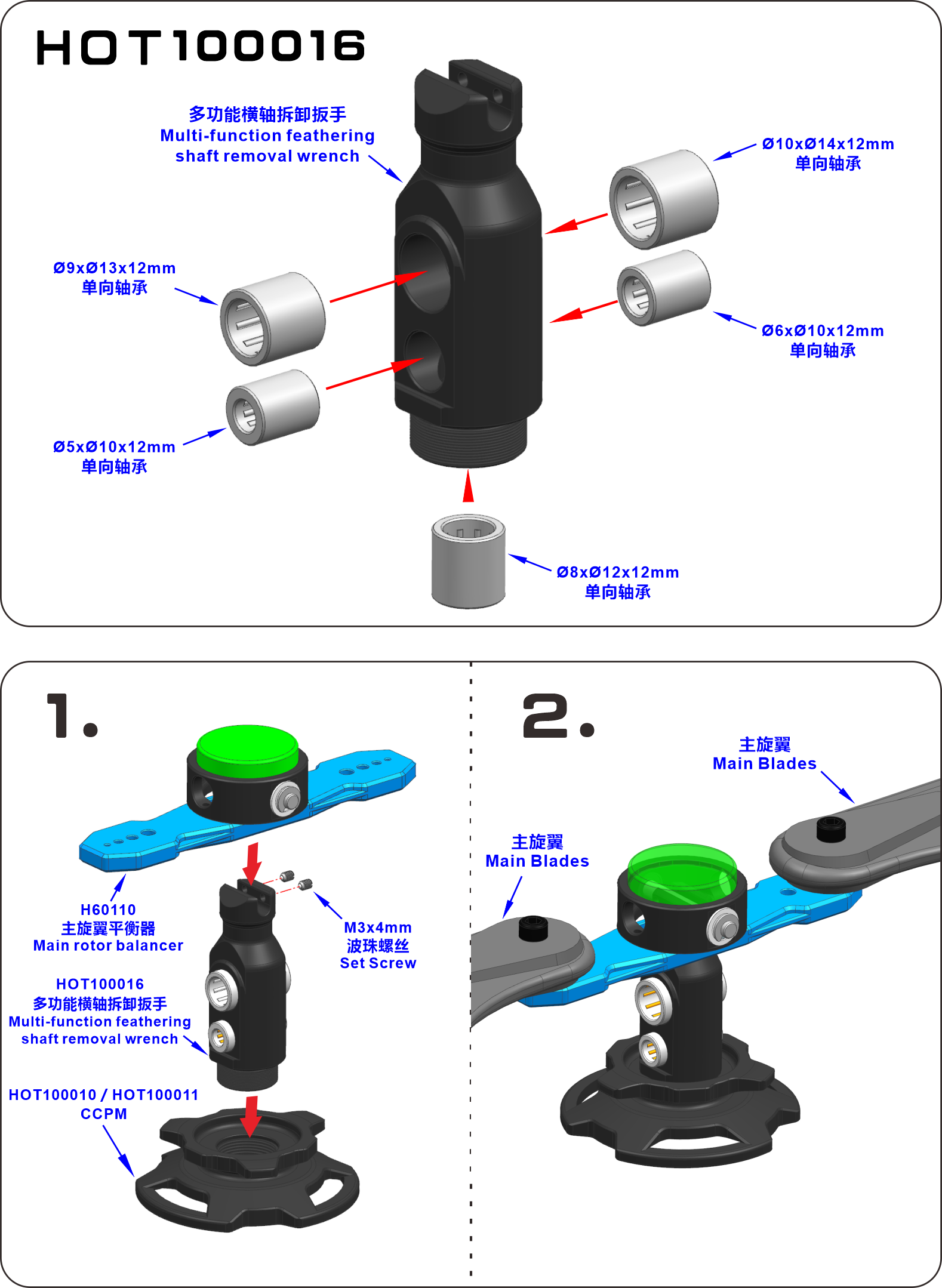

Multi-function Feathering Shaft Wrench HOT100016
Feathering Shaft Wrench/Not Contain Bearing HOT100017

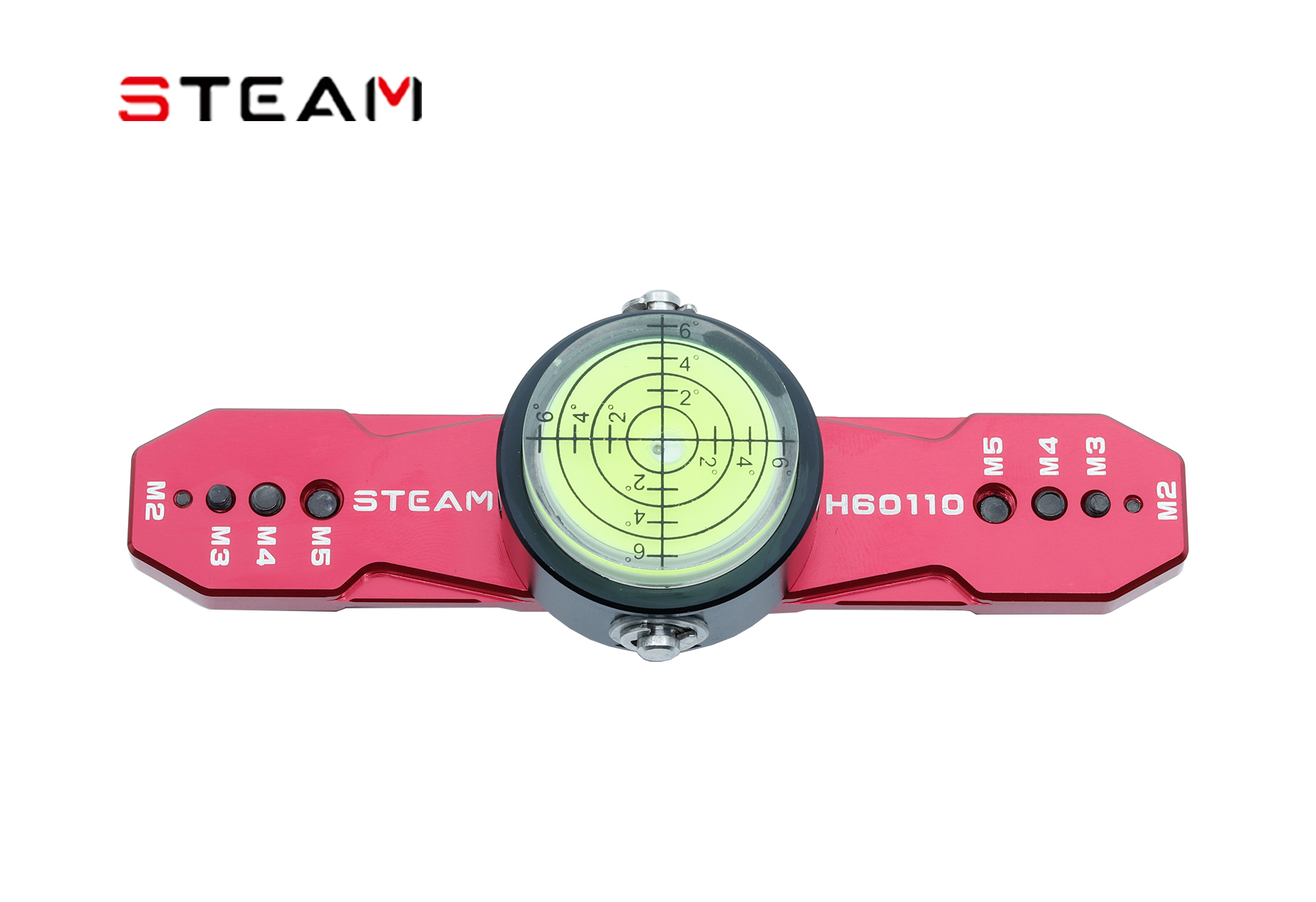

Multi-function Blade Balancer H60110
Steam Terminator Adjusting Tool SuitHOT100000

Specification：
Φ36.0×6.5MM Level×1
Bearing（Φ5.0×Φ10×4.0mm）×2
Shaft（Φ5.0×Φ44.0mm）×1
Φ5.0×0.8mm Stainless Steel Clip Reed×2
Blade Blance Bottom Plate×1（24×126×6.0mm）
M3.2×5.8 Step Screw×2
M2.0×8MM Socket Screw×2
M3.0×14MM Socket Screw×2
M4.0×16MM Socket Screw×2
M5.0×18MM Socket Screw×2
