Description：

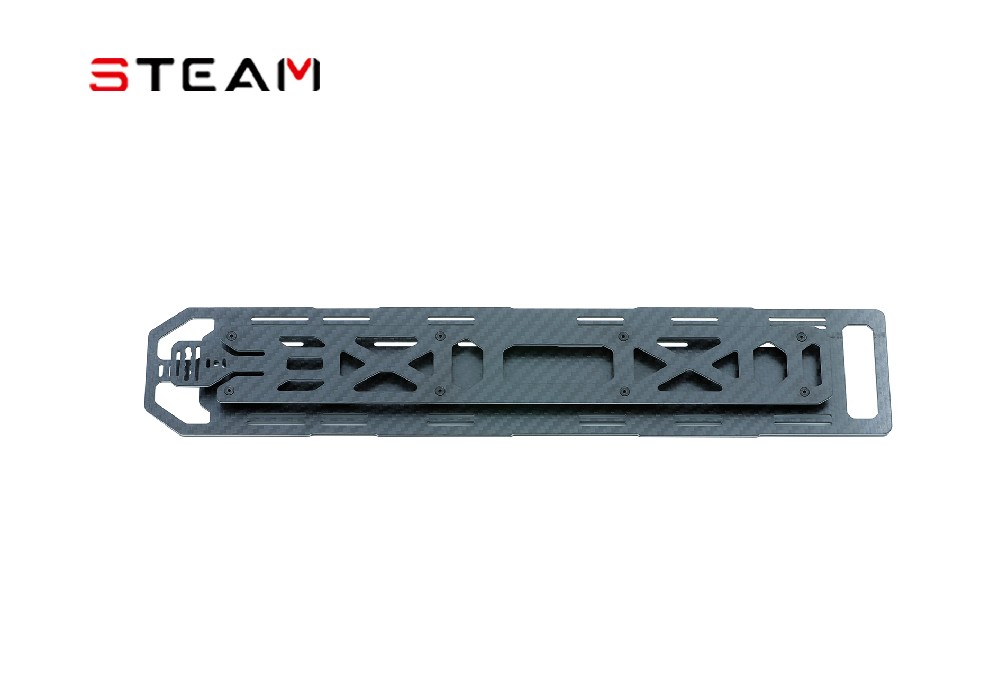

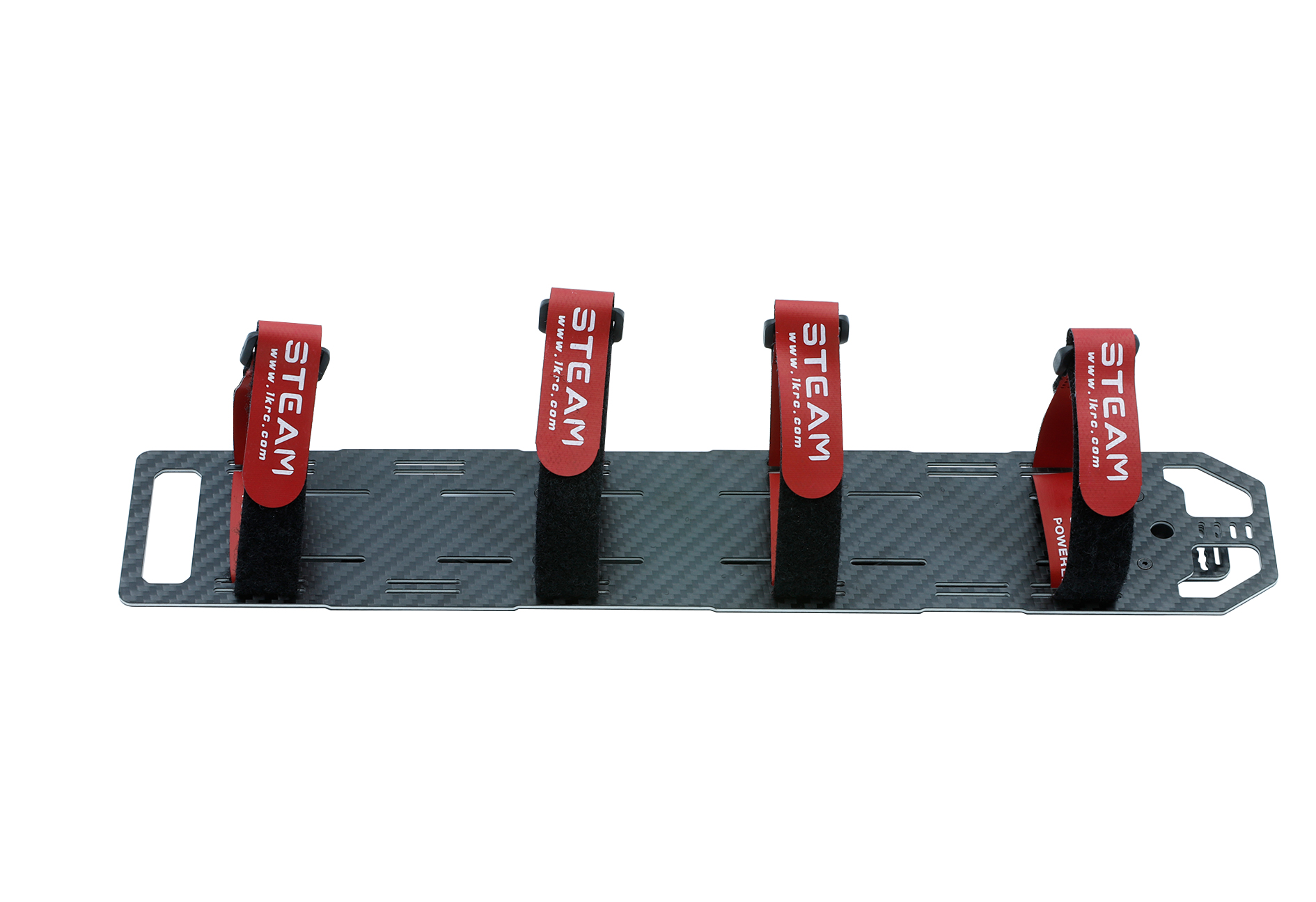

700 V2/V3 Integrated Slide Chute Battery Tray is suitable for Steam700V2/V3 helicopter model. The battery tie belt position is increased, the hole position is reduced to strengthen the strength, the lower plate is universal V1 body, and the integrated chute facilitates the installation of the panel, but lowers the battery center of gravity.

Related Product Number：
700V2/V3 Integrated Motor Mount H7207

700 V2/V3 Upper Fuselage Plate(L) H7124L

700 V2/V3 Upper Fuselage Plate(R) H712R

700 V2/V3 Lower Fuselage Plate(L) H7125L

700 V2/V3 Lower Fuselage Plate(R) H7125LR

700 V2/V3 Integrated Battery Slide Chute(L) H7205L

700 V2/V3 Integrated Battery Slide Chute(R) H7205R

700 V1/V2/V3 700 V1/V2/V3 Landing Gear Reinforced Carbon Fiber Plate H7127

700 V1/V2/V3 700 V1/V2/V3 Reinforced Vertical Tail  H7126

700 V2/V3 700 V2/V3 Integrated Slide Chute Battery Tray H7209

700V2 Canopy Fixing Column H7210

700  V3 Canopy Fixing Column H7211

700 V2/V3 Fuselage Side-plate Connector H7212

Steam Canopy Quick Disassembly/General Purpose H7208

700V2 Canopy H7213

700 V2/V3 Fuselage Side-plate screws H7215

Specification：
V2/V3 Integrated Slide Chute Battery Upper Plate×1（342×40×2mm）
V2/V3 Integrated Slide Chute Battery Lower Plate×1（370×70.0×2mm）
Battery Tray Metal Fixing Column×1（10×6×5mm）
Metal Connecting Column×6 (Φ4×7mm)
M2.5×5mm Step Screw ×1
M2.5×5mm Screw×12
M2.5×5×0.2mm Spacer×12
