Description：

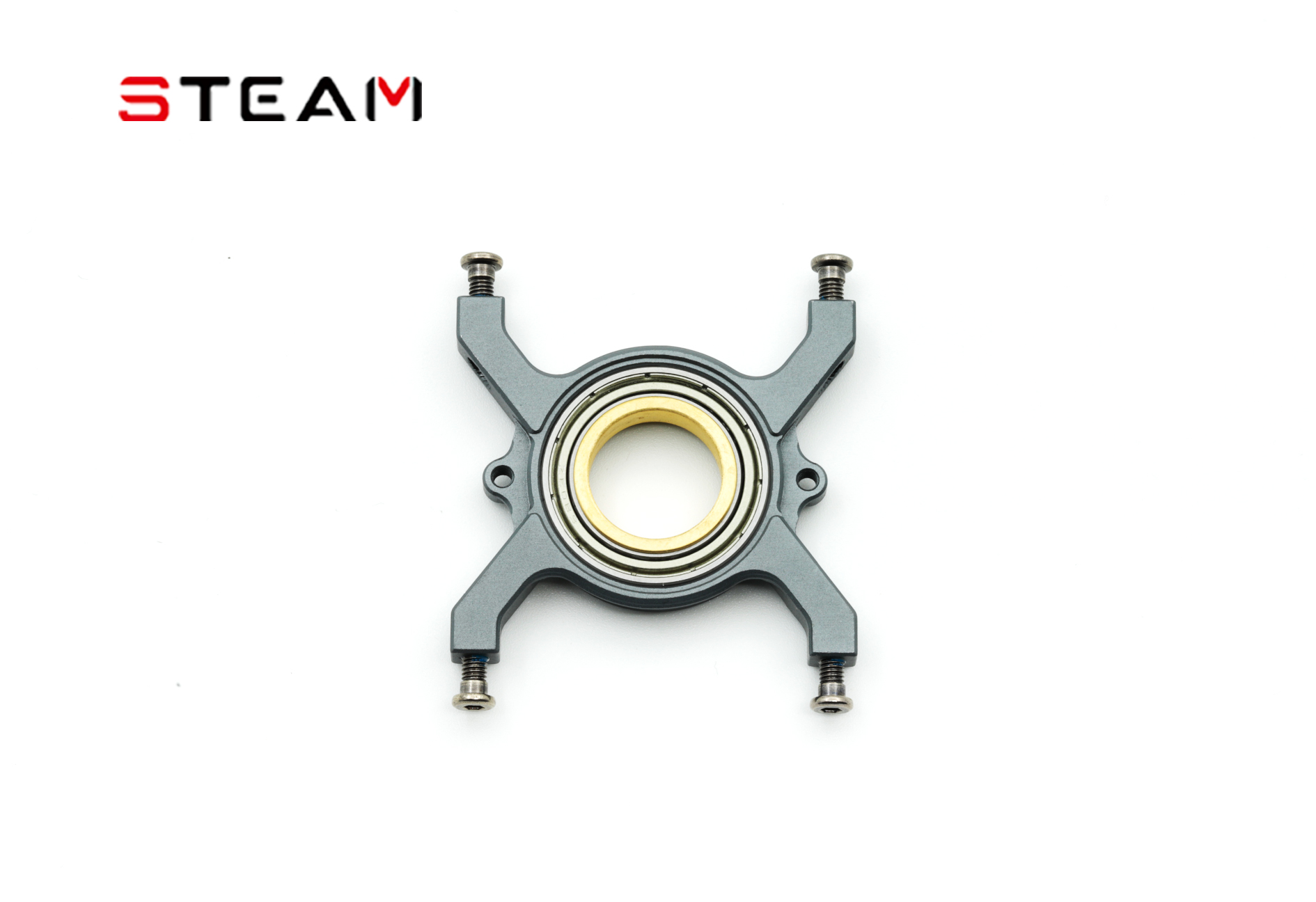

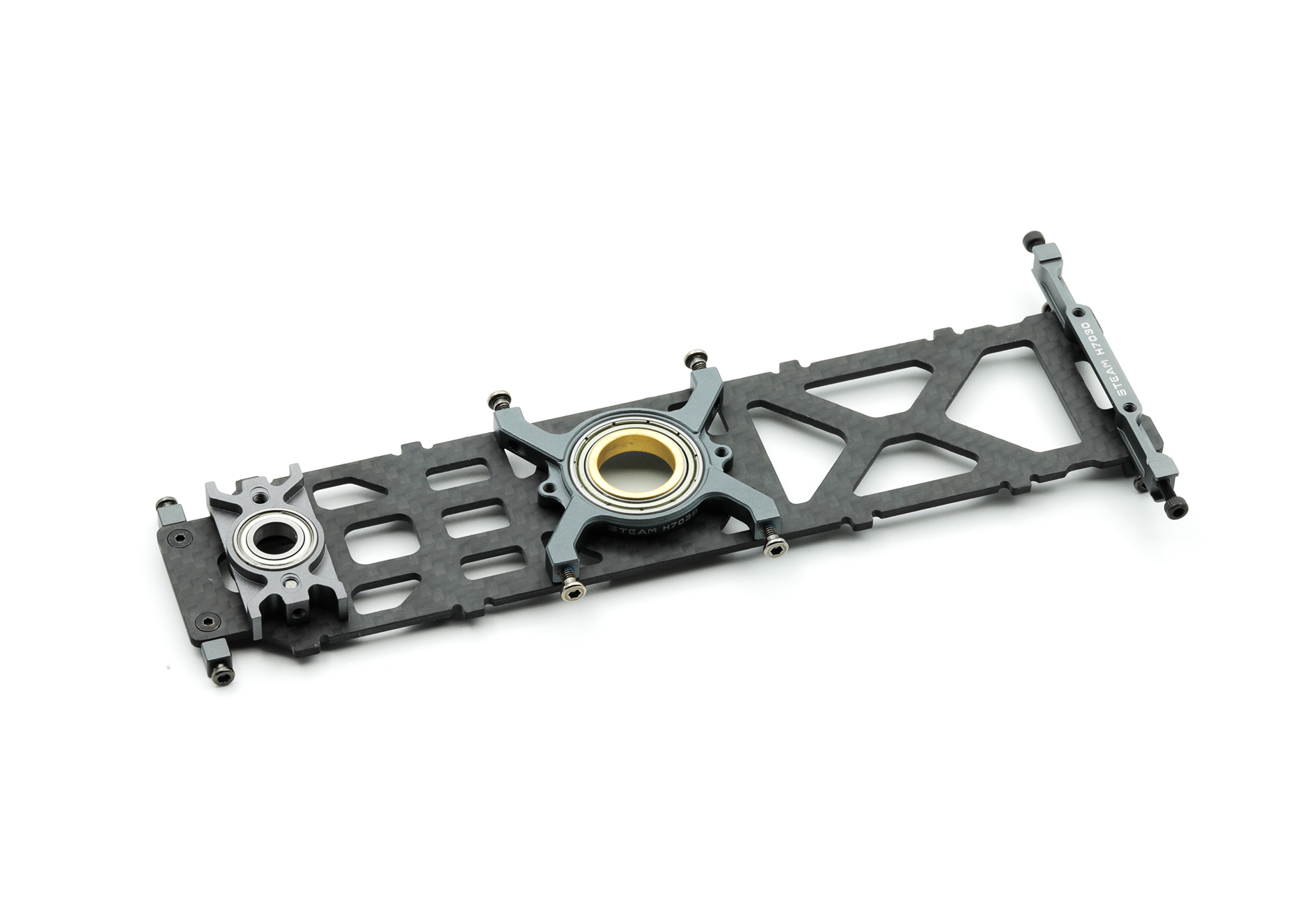

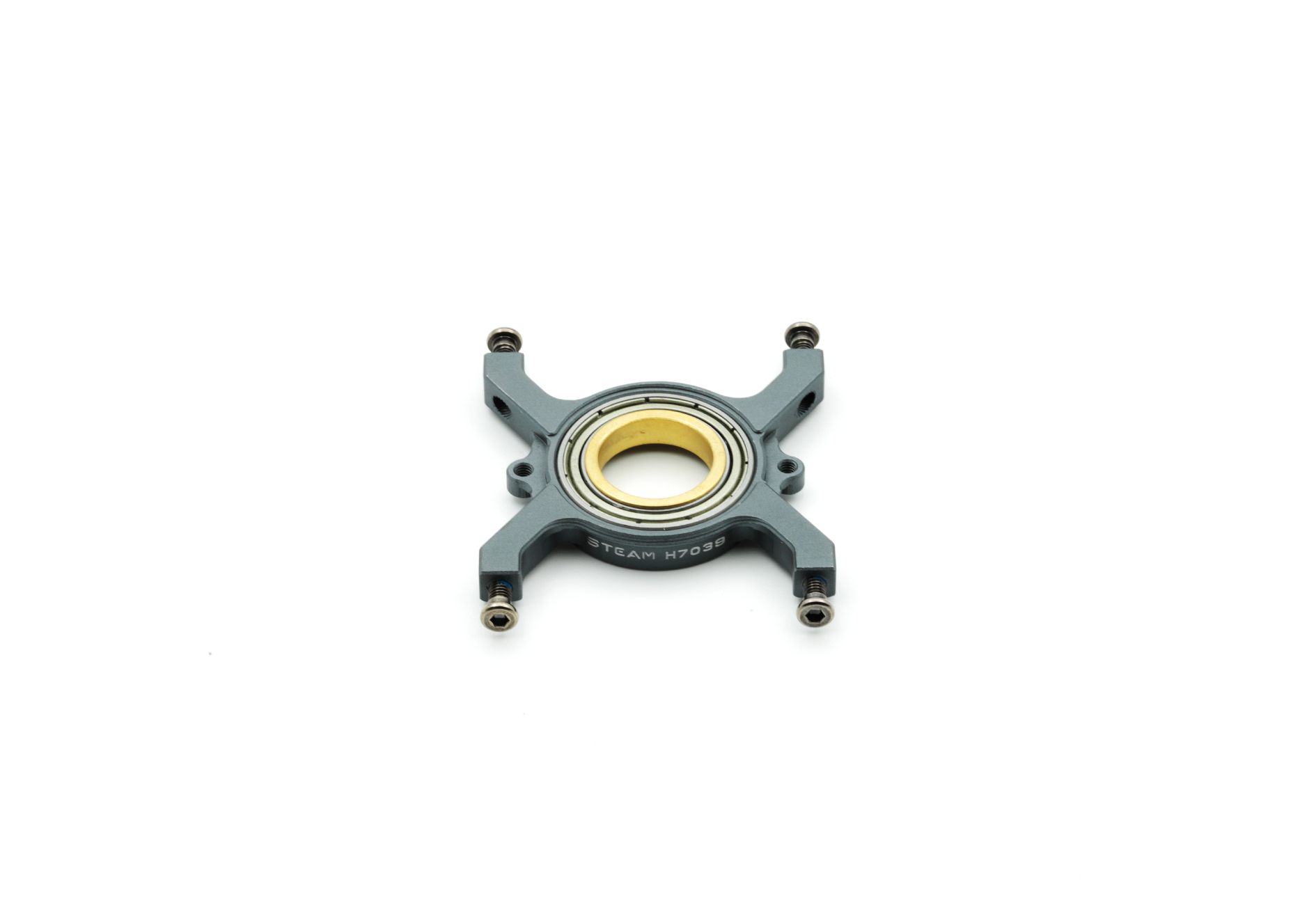

Adopt 6061T6 aluminum alloy high precision nc machining, suitable for Steam Armor 700 Helicopter, Built-in washer. No sliding washers are needed for assembly. Can maintain the structural strength, to achieve the lightest.

Related Product Number：

700 New Type Transverse Support Plate H7026A

700 Pure Carbon Fiber Transverse Support Plate H7026B

700 The Third Spindle Bearing Mount H7089

700 The Third Spindle Bearing Mount Spacer H7040

700 Motor Gear Housing/Lower H7056

700 Motor Gear Housing/Upper H7059

700 Motor Mount reinforced Part/Left H7060L

700 Motor Mount reinforced Part/Right H7060R

700 New Type Metal Anti-rotaion Bracket Set  H7024A

700 Pure Carbon Fiber Metal Anti-rotaion Bracket Set H7024B

700 New Type Electronic Fixed Panel H7061A

700 Pure Carbon Fiber Electronic Fixed Plate H7061B

700 Tail Boom Housing H7071

Antenna Mount Set MK6012

Specification：

The Third Metal Spindle Bearing Mount×1（45.5×42.0×6.6mm）

Metal Copper Spacer×1（18.5×15×6.0mm）

Bearing×1（Φ17×Φ26×5.0mm）

M2.5×5.5mm Small Cap Step Screw×2

M3.0×5.5mm Small Cap Step Screw×4
