Description：

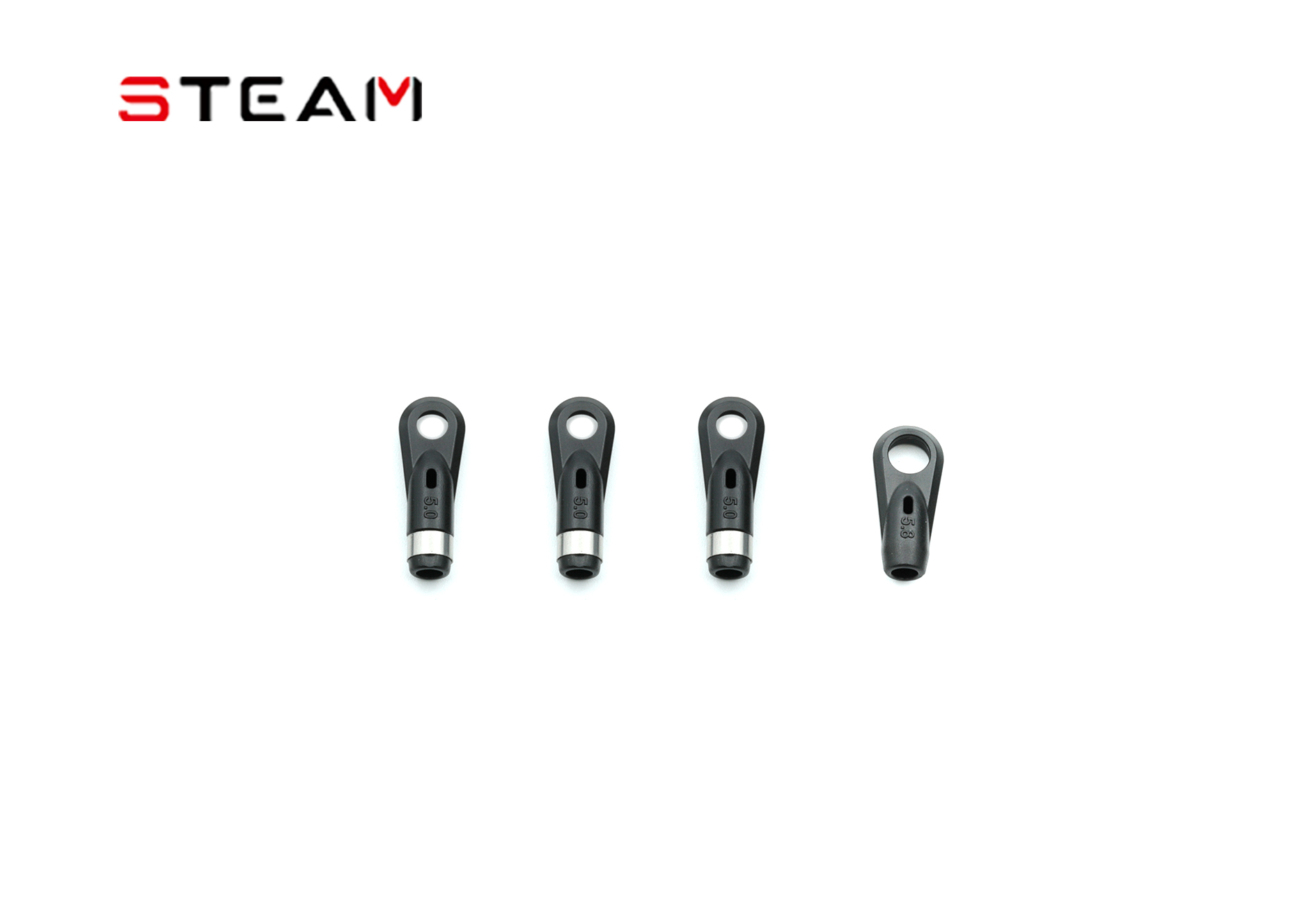

700 Swashplate Ball Link is suitable for class 700 helicopter modified and upgraded. Install thread rod φ 3.0mm, design thread depth observation hole. With stainless steel anti-cracking circle design. To meet the personalized requirements, the structure design meets the strict flight bearing requirements, effectively improve the flight stability.

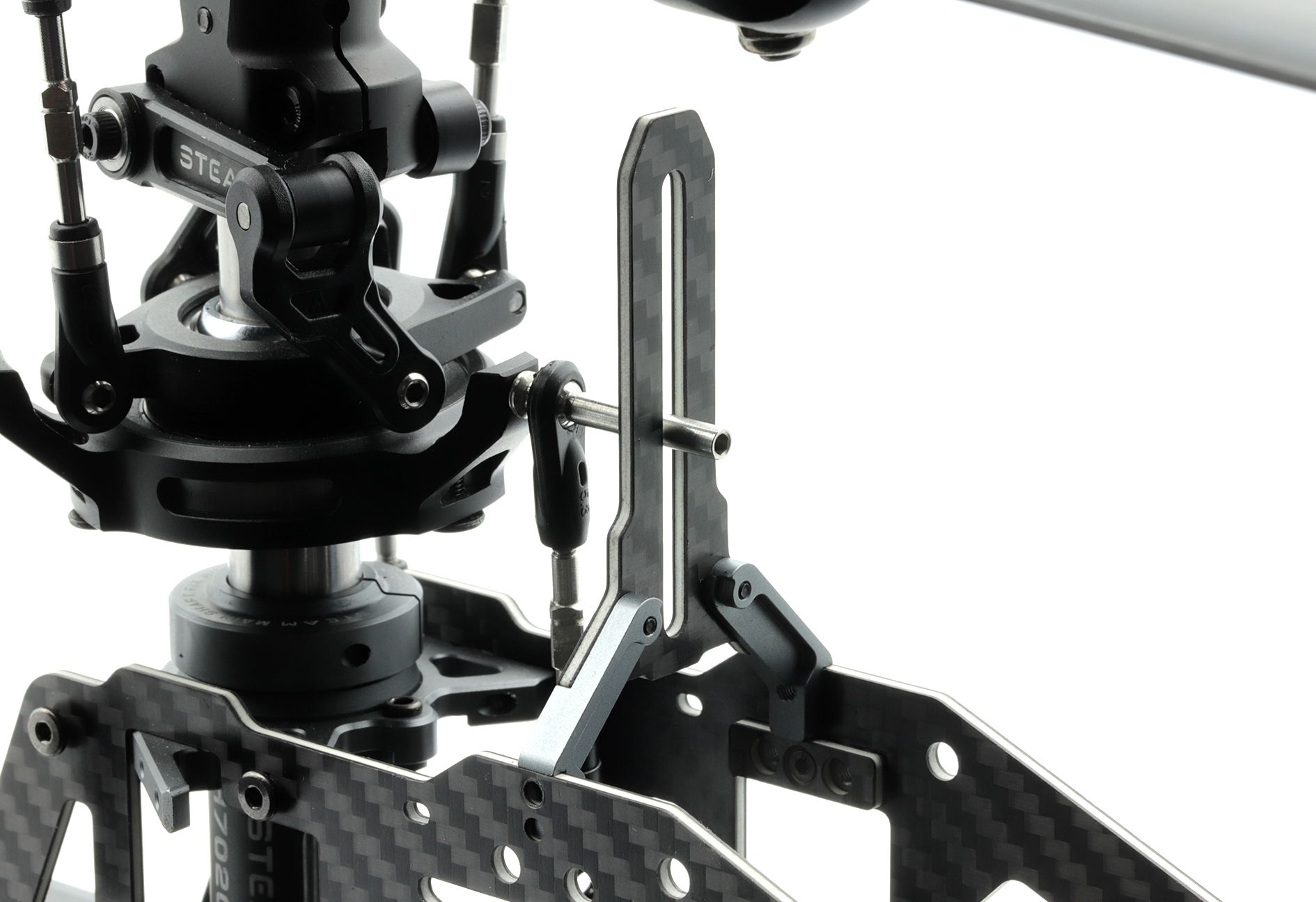

Attention：One of them is φ 5.8mm large specification ball link. Design to prevent swashplate and linkage rod interference。

Caution:

1.Thread rod installed, effect depth should be greater than 2 times the diameter.

2.Linkage ball and ball link need to be installed with zero tolerance. And confirm it can turn smoothly. Can use reamer or WD40 lubricant.

Related Product Number：

700 Metal Swashplate   H7011

700 Swashplate Outer   H7107

700 Swashplate Inner    H7108

700 Main Rotor Linkage Rod      H7007

700 Servo Linkage Rod          H7008

700 Swashplate Ball Link         H7109

700 Ball Link          H7110

Specification：

M3×Φ5.0mm Ball Link×3 (M3×Φ5×Φ6×24mm)

Φ5.5 Stainless Steel Anti-cracking Circle×3

M3×Φ5.8mm Ball Link×1 (M3×Φ5.8×Φ6×18mm)
