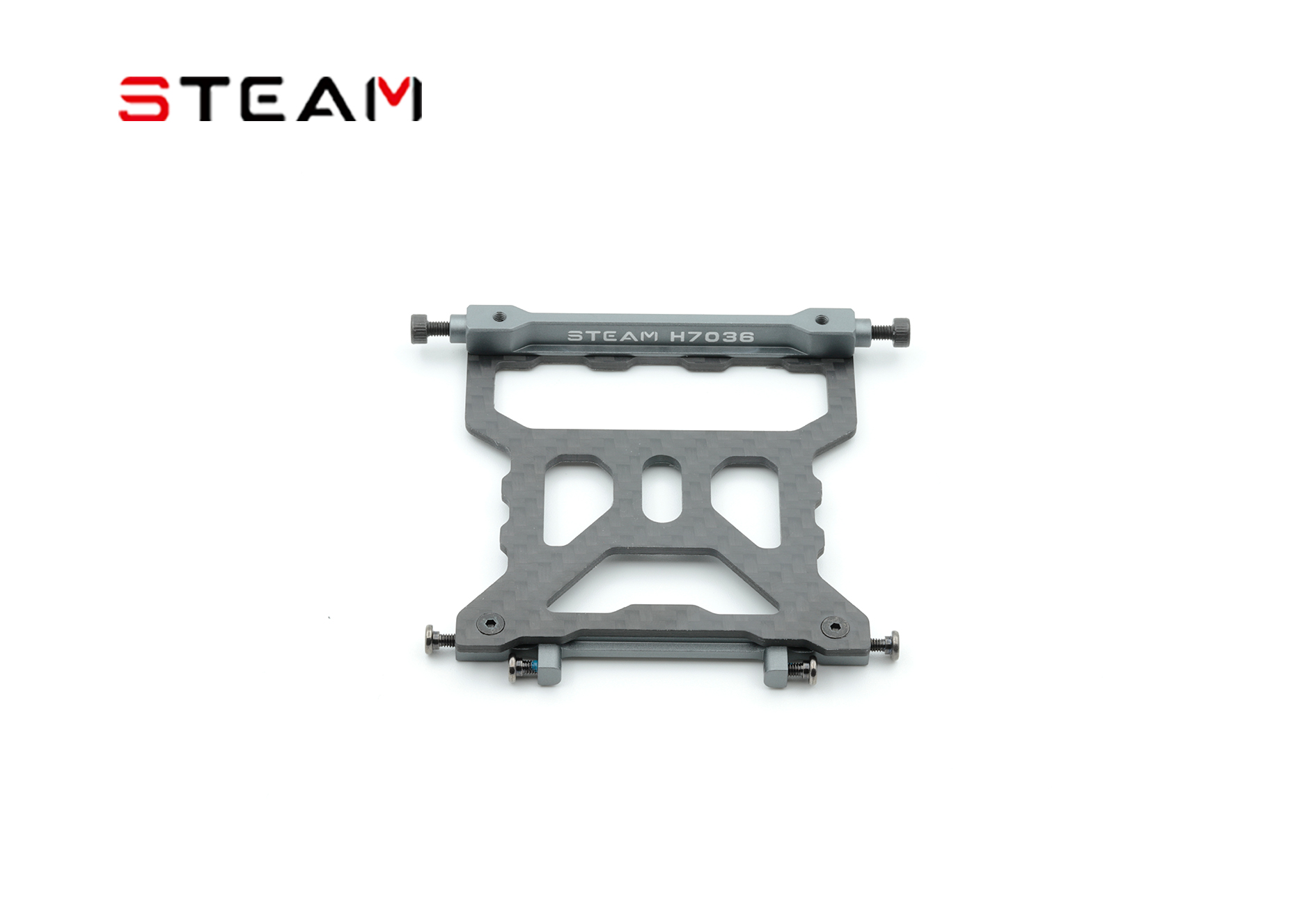

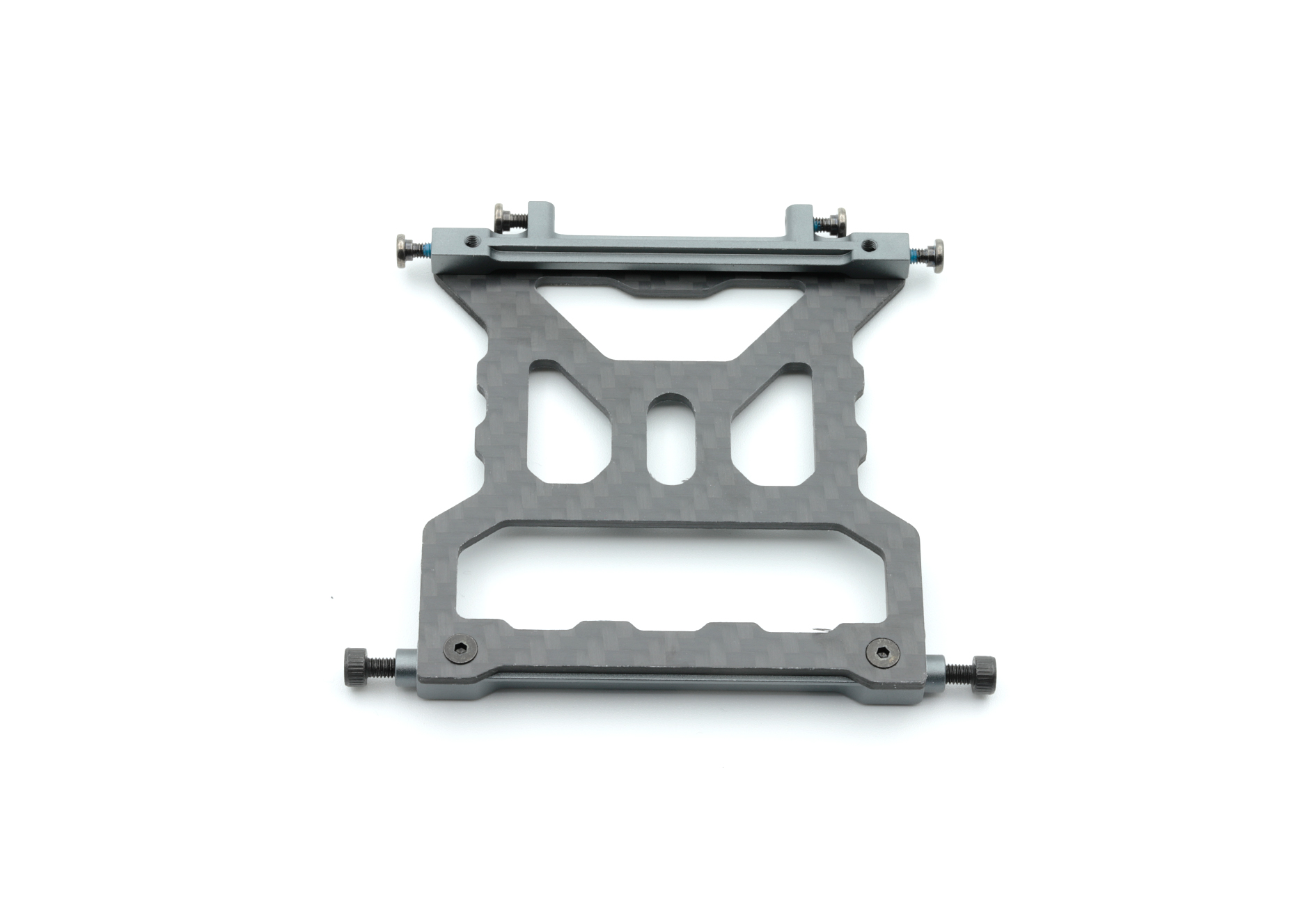

700 Pure Carbon Battery Tailgate H7036B
- Model: H7036B
- Colour:
- Price: 75RMB
PRODUCT DETAILS
Description：

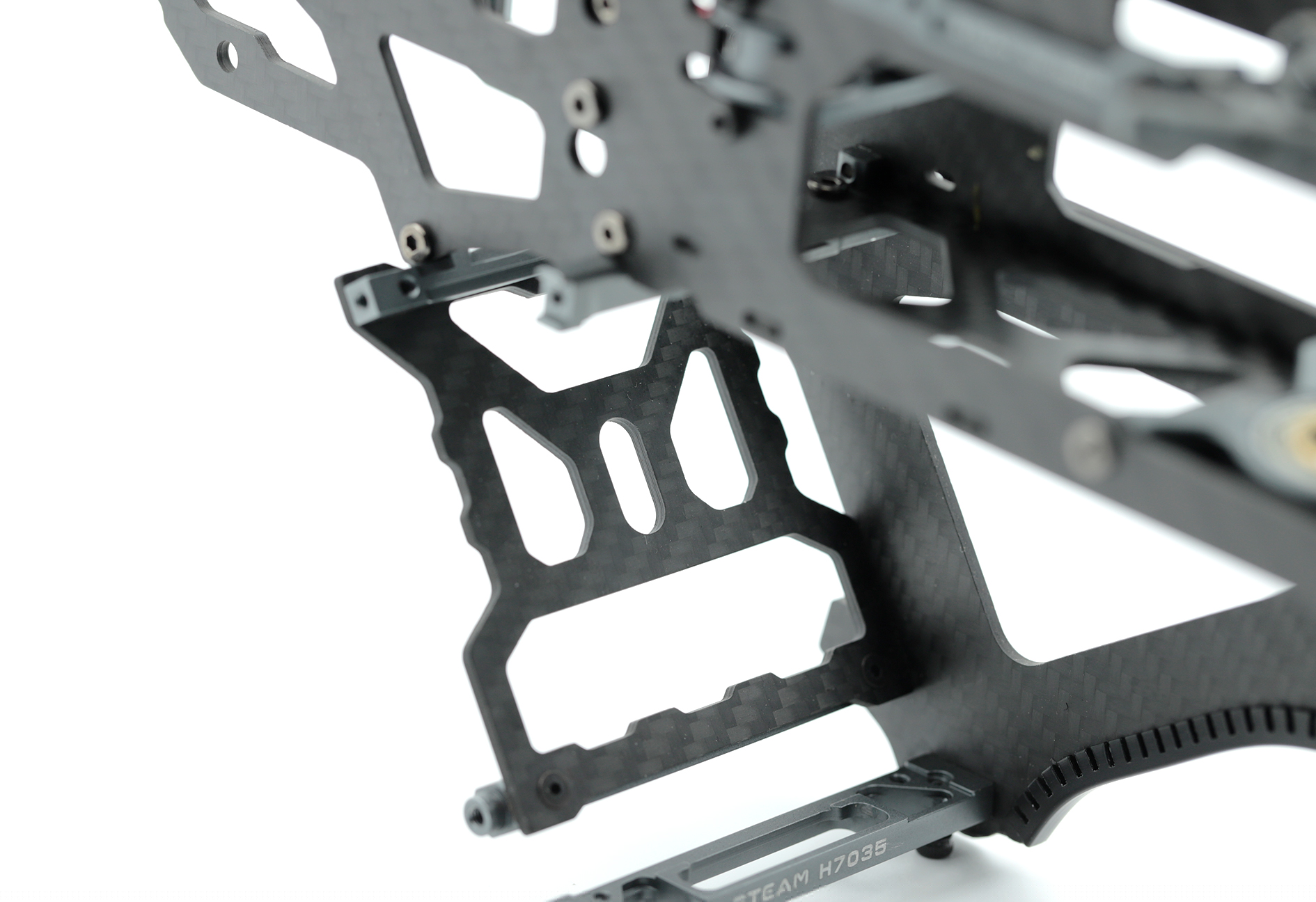

Suitable for Steam Armor 700 Helicopter, mortise and tenon design. Can maintain structural strength, to achieve the lightest. Adopt 2mm thickness of pure carbon fiber sheet CNC precision processing.
Related Product Number：
700 Metal Side-Plate Connecting Part H7027
700 Pure Carbon Battery Tailgate H7036
700 Metal Battery Tray Locking Block H7021
Specification：
Pure Carbon Fiber Supporting Plate×1（73.5×73.0×2.0mm）
Metal Connecting Column×1（76.0×6.7×6.7mm）
Metal Side-plate Connecting Aluminum Part侧板连接铝件×1（70.0×10.5×5.0mm）
M2.5×6.0mm Step Screw×4
M3.0×8.0mm Socket Screw×2
M2.5×5mm Countersunk Screw×4
