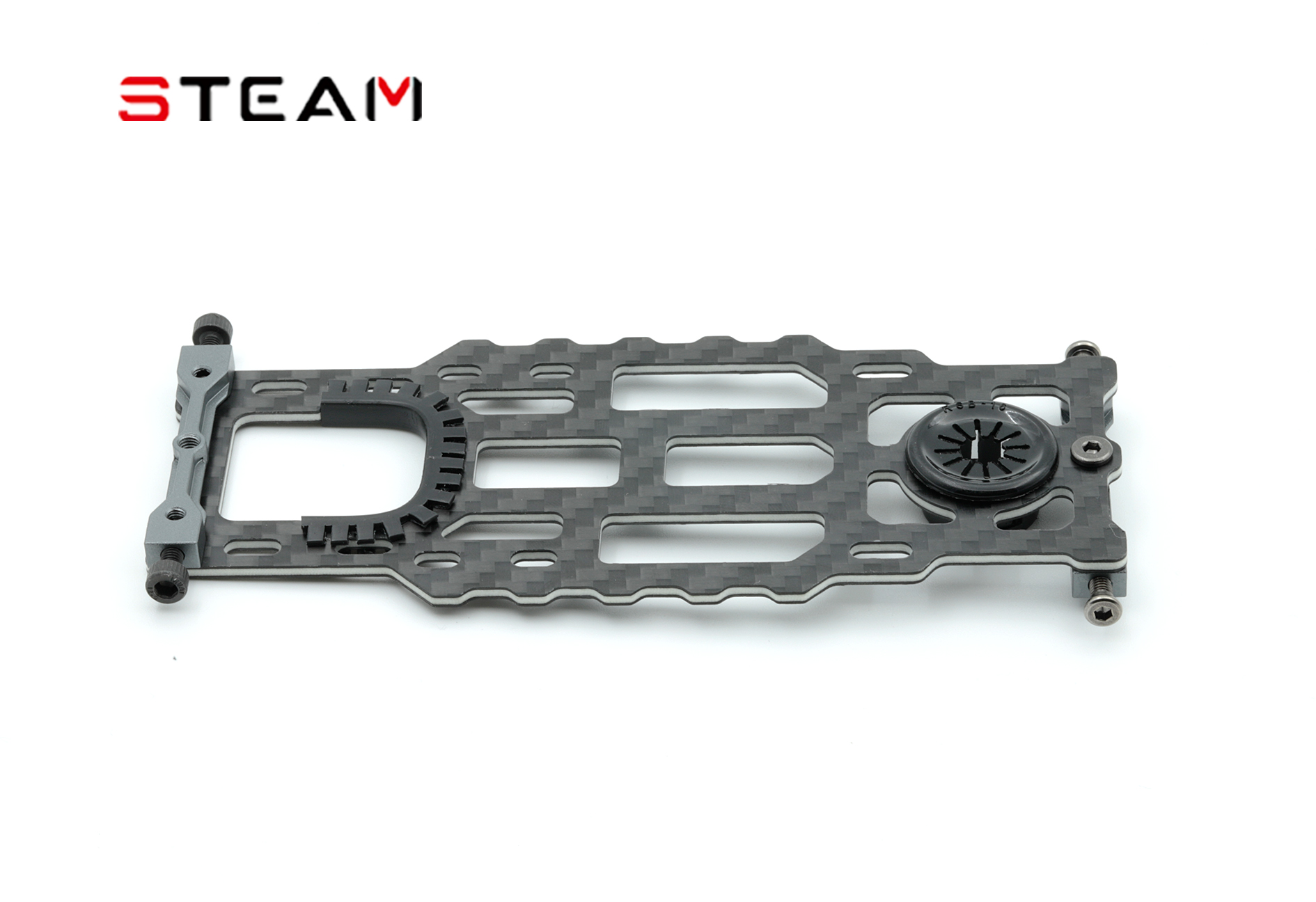

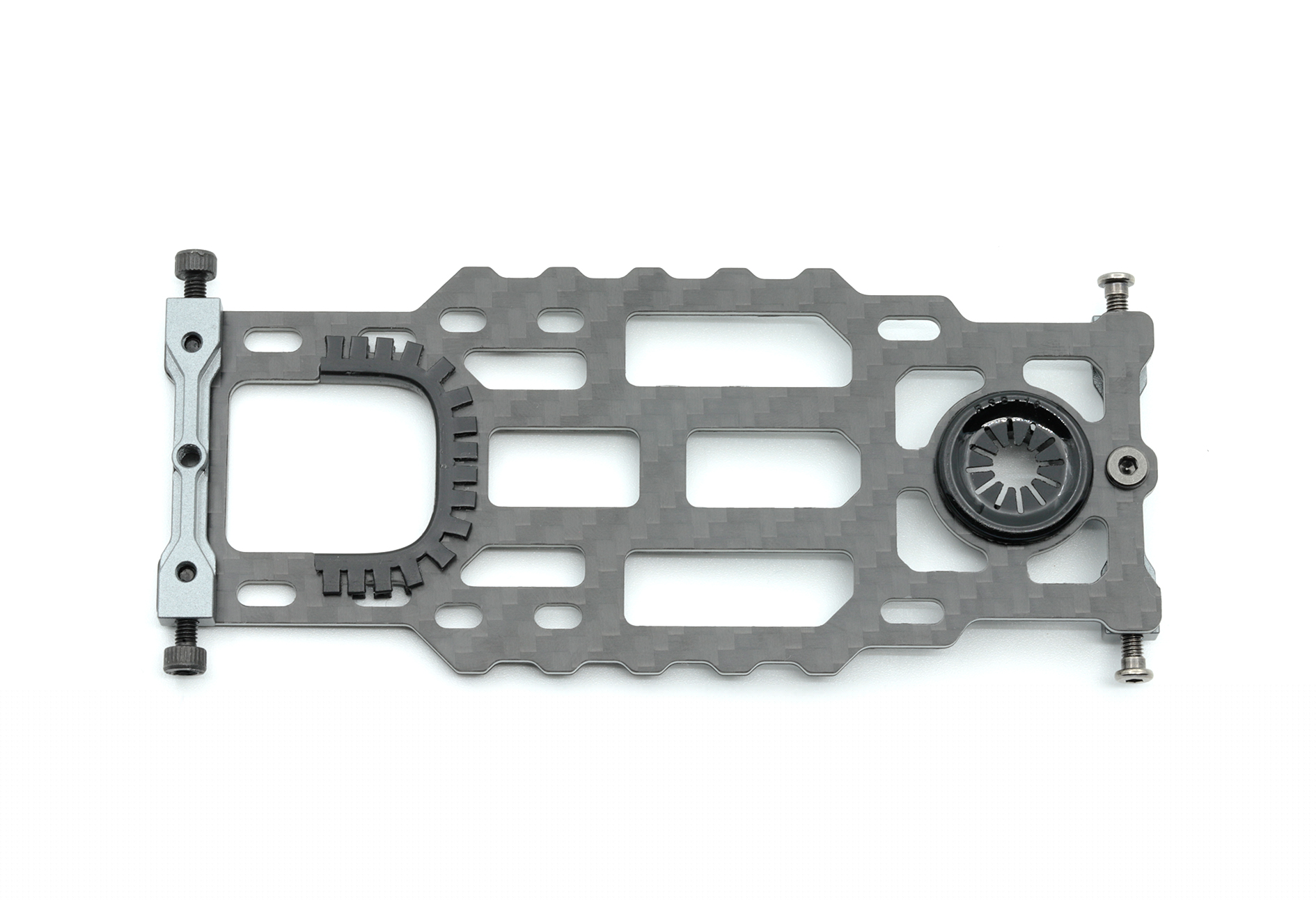

700 New Type ESC Plate Set H7034A
- Model: H7034A
- Colour:
- Price: 95RMB
PRODUCT DETAILS
Description：
Suitable for Steam Armor 700 Helicopter Model. Mortise and tenon design. Can maintain the structural strength to achieve the lightest.Adopt a 2mm thickness of the new carbon fiber sheet CNC precision processing. Its interior is made of composite material, which increases its bending and compression strength by about 5% and can weigh 20% less than pure carbon fiber.
Related Product Number：
700 Pure Carbon ESC Plate Set H7034B
700 New Type ESC Plate Set H7034A
Specification：
New Type Carbon Fiber Supporting Plate×1（127.0×53.0×2.0mm）
Metal Connecting Column×2（42.0×7.0×4.0mm）
M2.5×5mm Flat Cap Screw×2
M3×5.5mm Small Cap Step Screw×2
H2.0 Wiring Cover×1
Φ15.0 Wiring Cover×1
M3.0×8.0mm Large Cap Step Screw×1
M3.0×8.0mm Socket Screw×2
