700 Integrated Main Shaft Mount/Angular Contact Bearing H7020
- Model: H7020
- Colour:
- Price: 137RMB
Description：

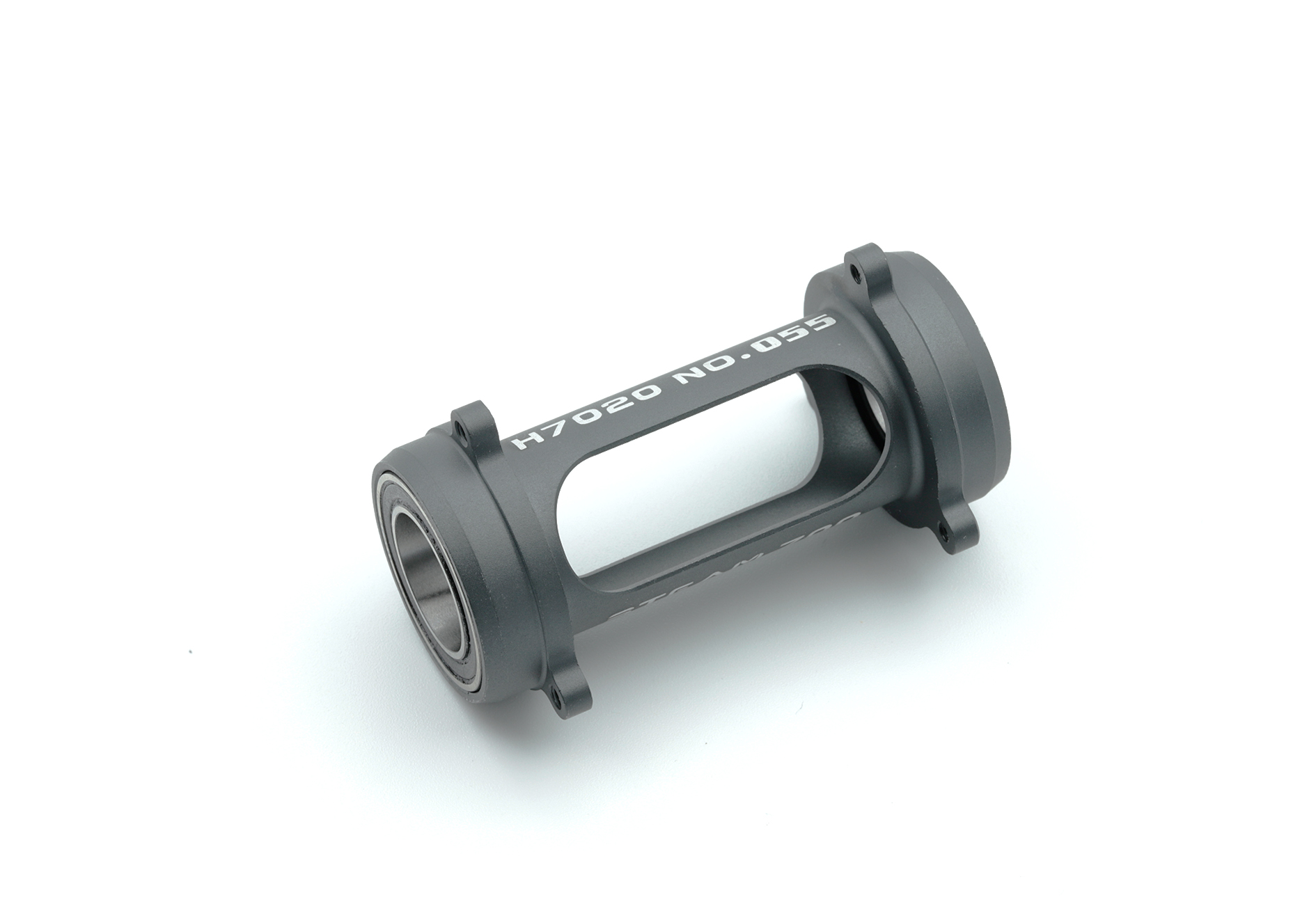

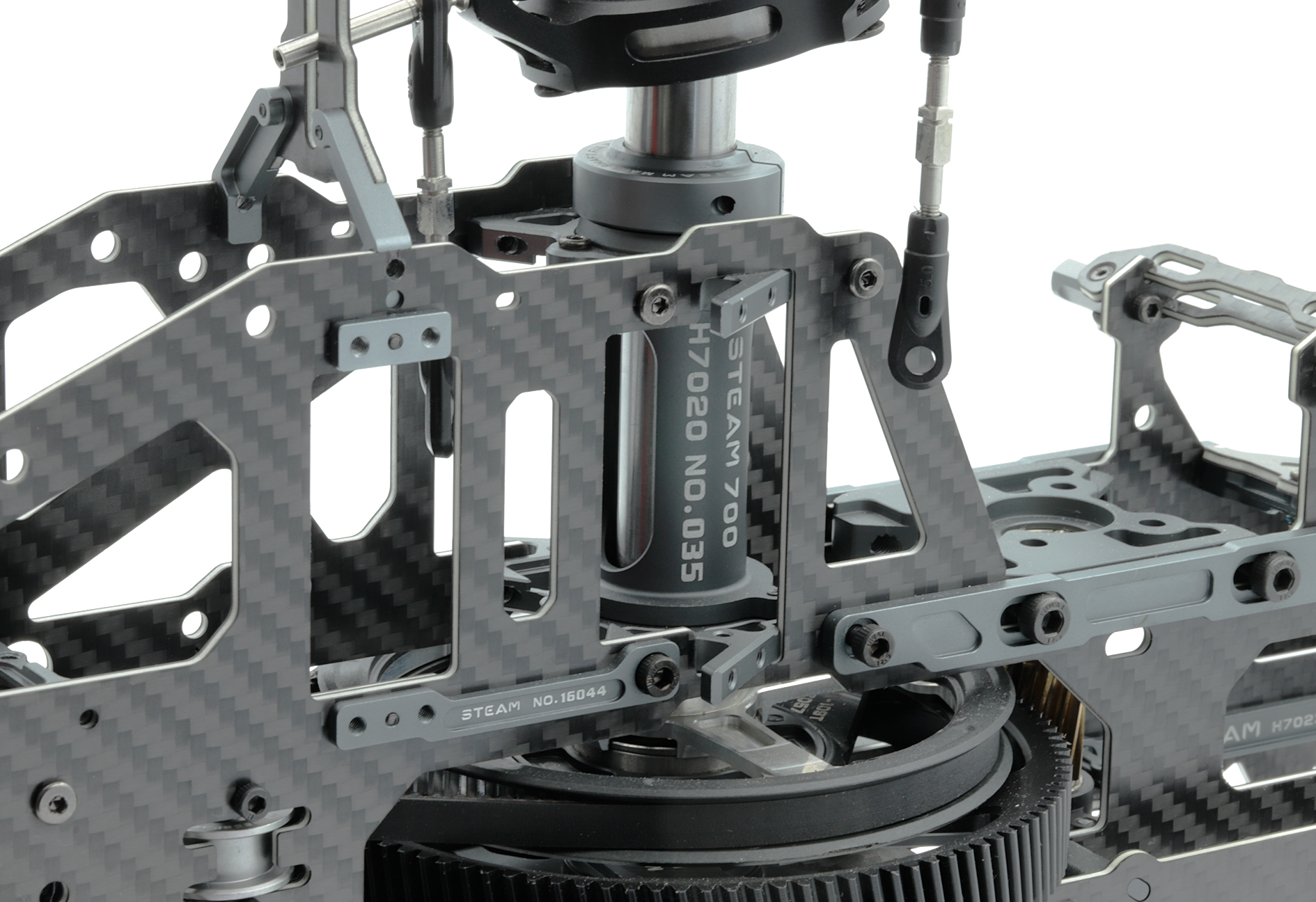

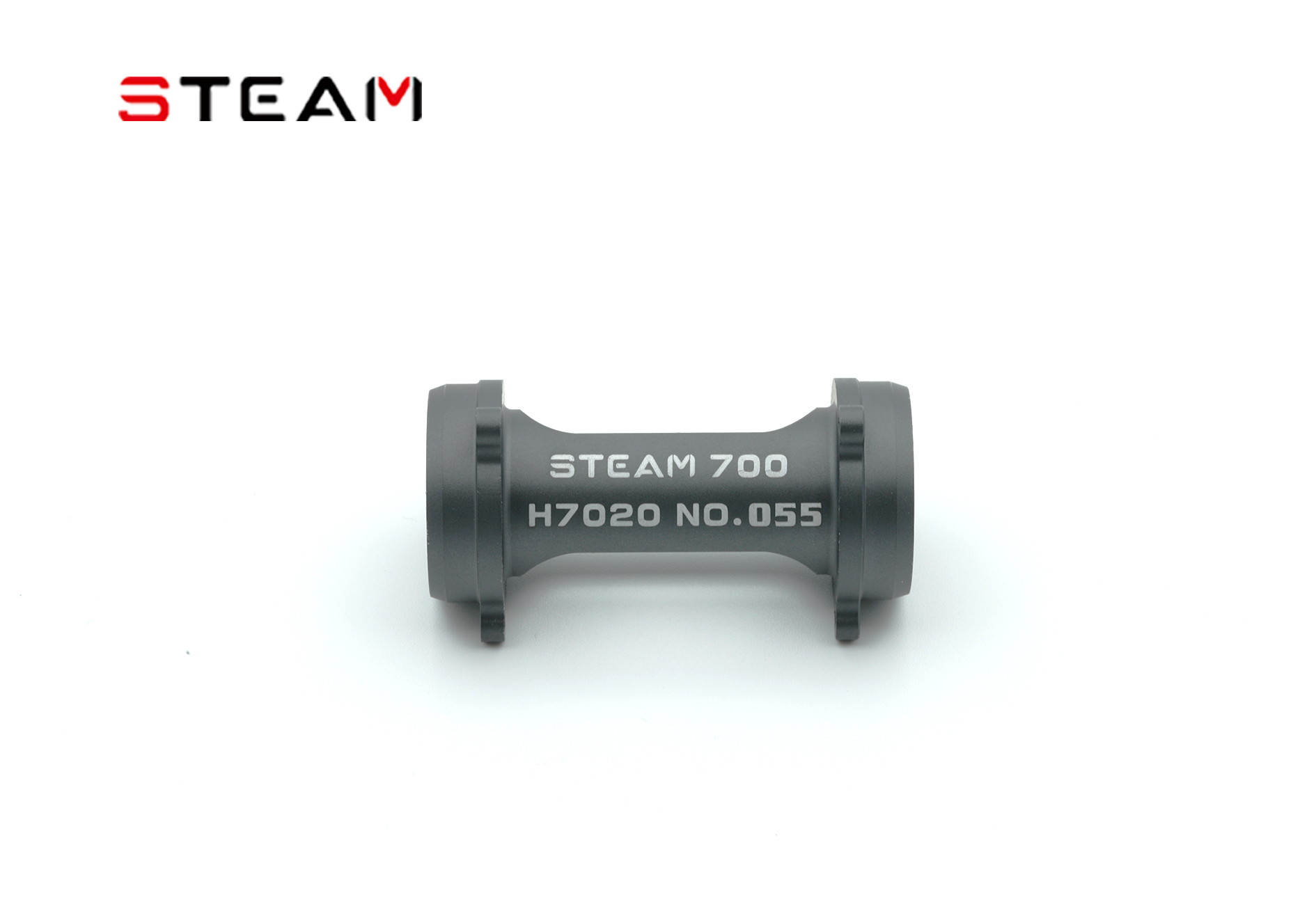

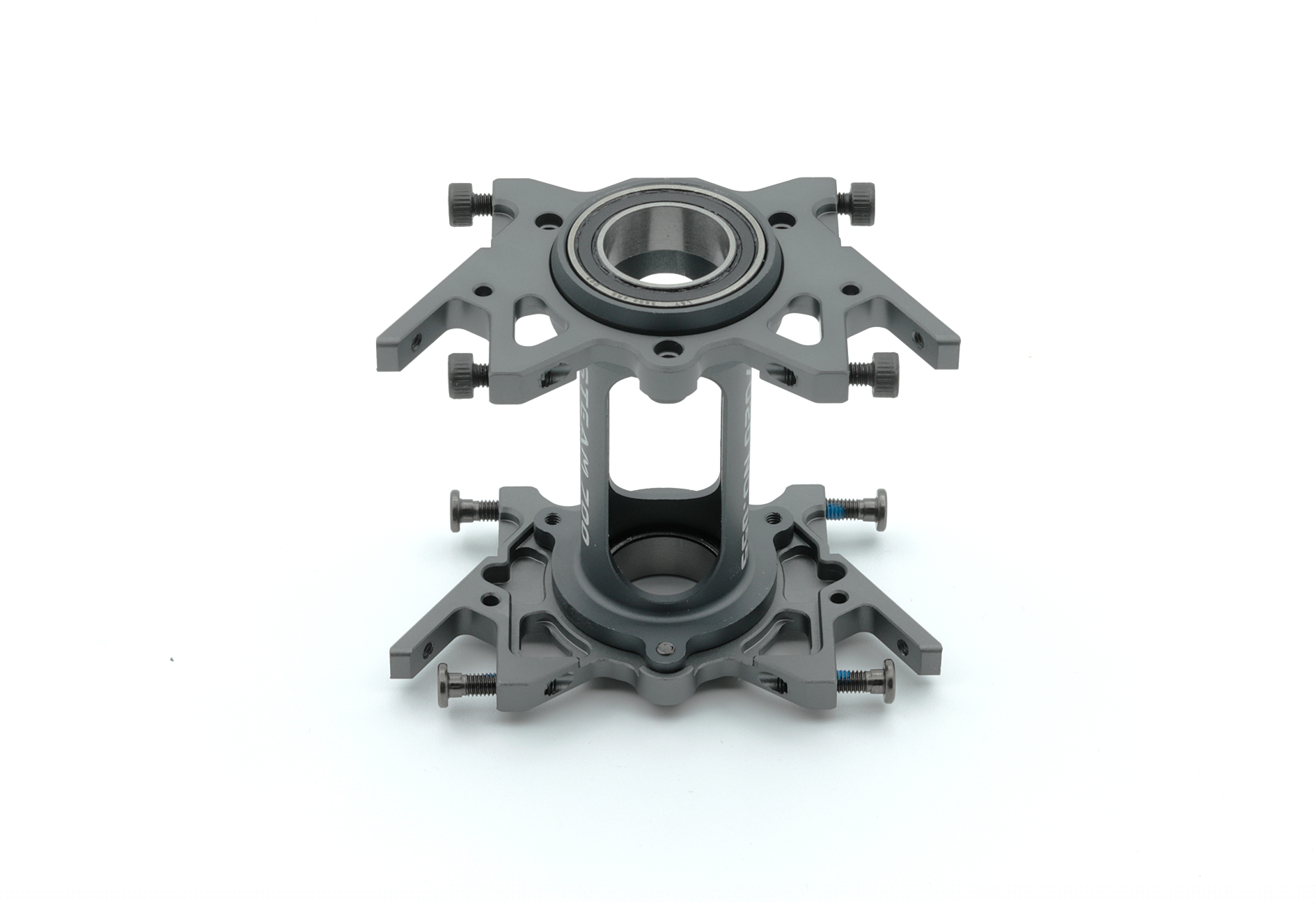

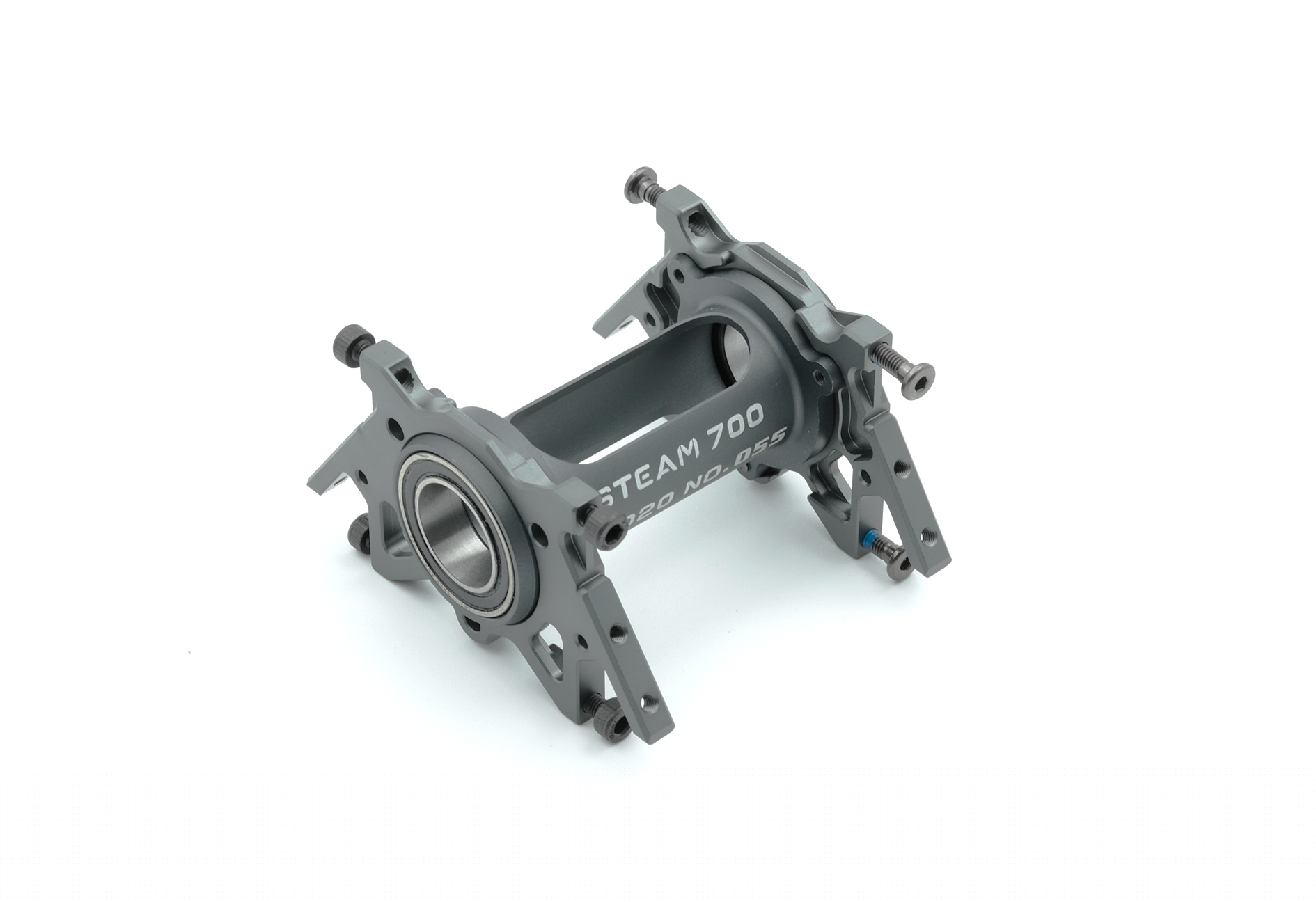

Metal Integrated Main Shaft Mount Reinfoced Plate is suitable for Steam Aromor 700 Helicopter, 6061T6 aluminum alloy high precision nc machining. Since more than ten years ago, we launched Integrated Main Shaft Mount, repeatedly received high praise.Adopt mortise and tenon design. Double row angular contact bearings are used to carry the transfer of force, let the screw hole rise into the carbon fiber plate. Thus maintain the structural strength, to achieve the lightest product.
Related Product Number：
700 Integrated Main Shaft Mount/Angular Contact Bearing H7020
700 Aileron Servo Mount H7014
700 Elevator Mounting Set H7025
700 Rudder Mounting Set H7045
Specification：
700 Integrated Main Shaft Mount×1（60×Φ37.5×Φ18.0mm）
700 Double Row Angular Contact Bearing×2（Φ15×Φ24.0×7mm）
M2.5×6.5mm Step Screw×6
