Description：

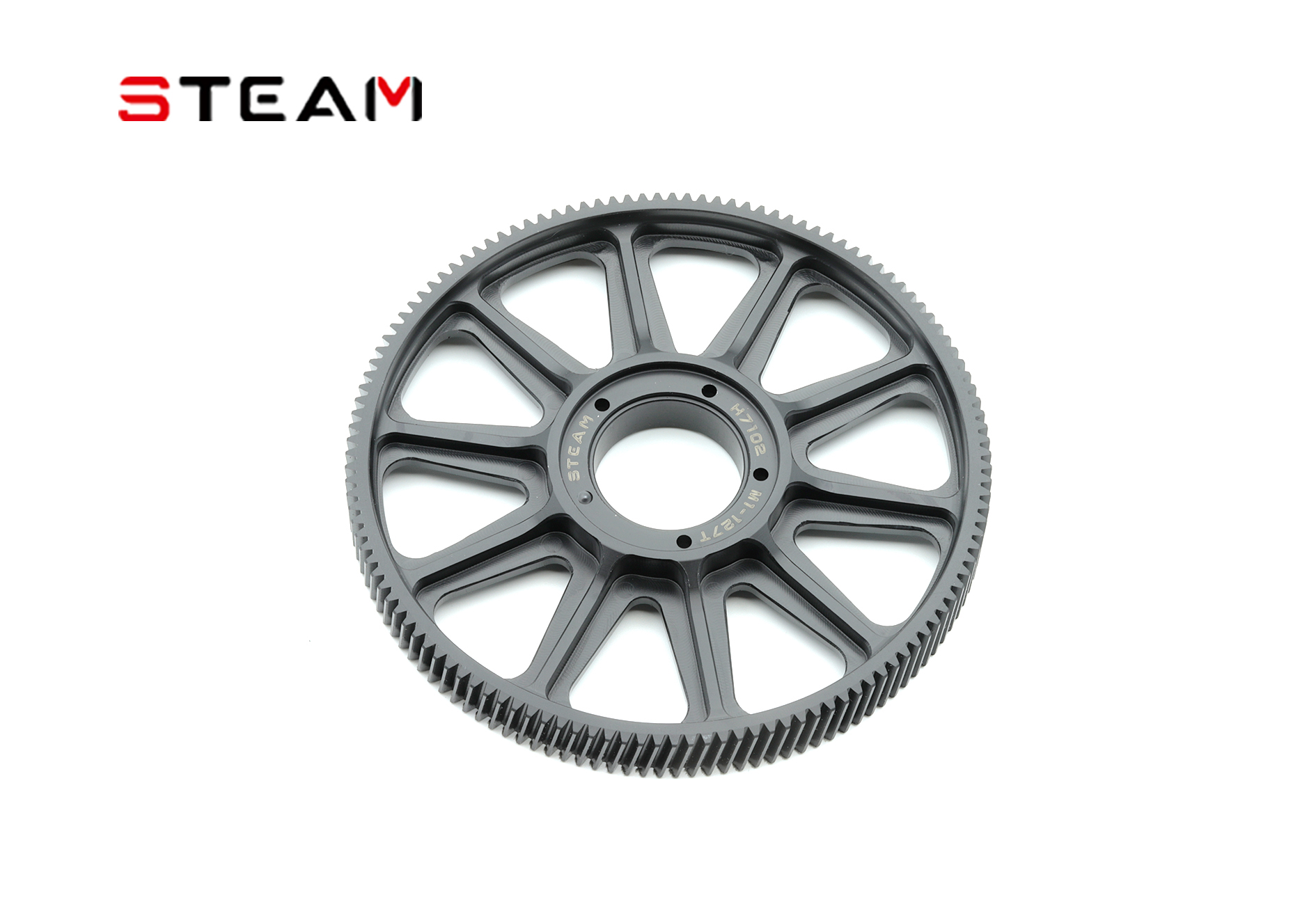

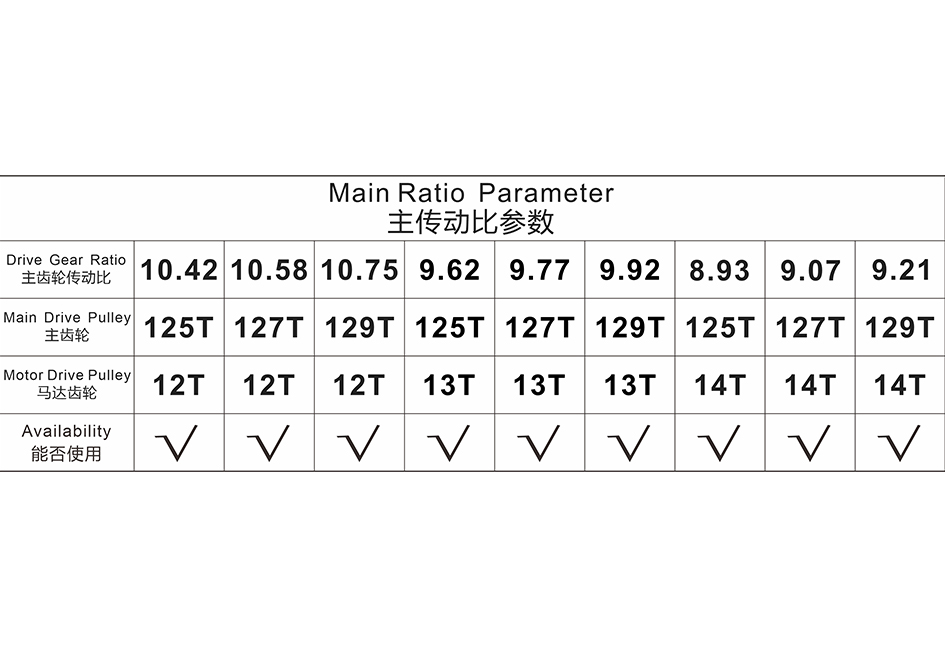

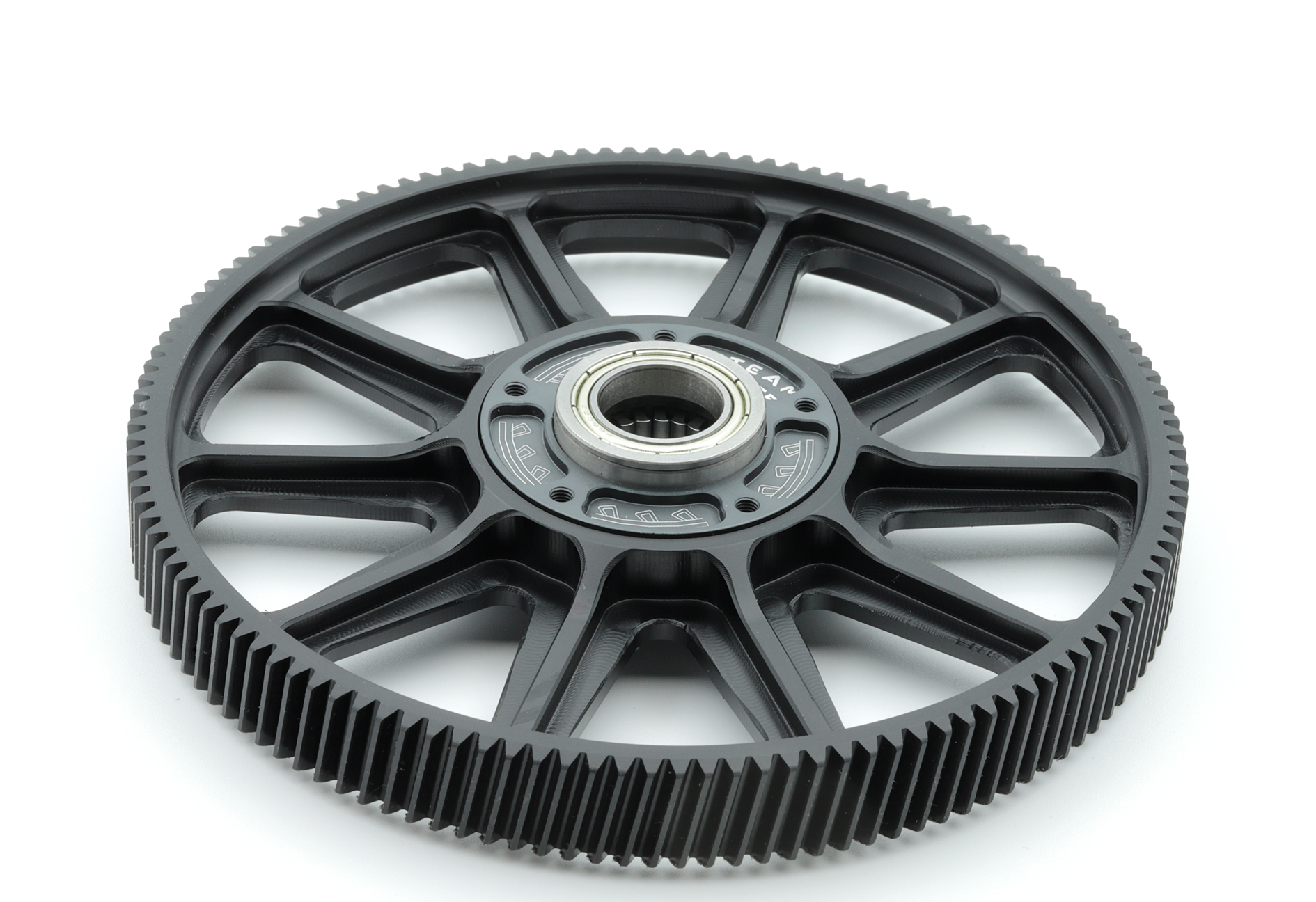

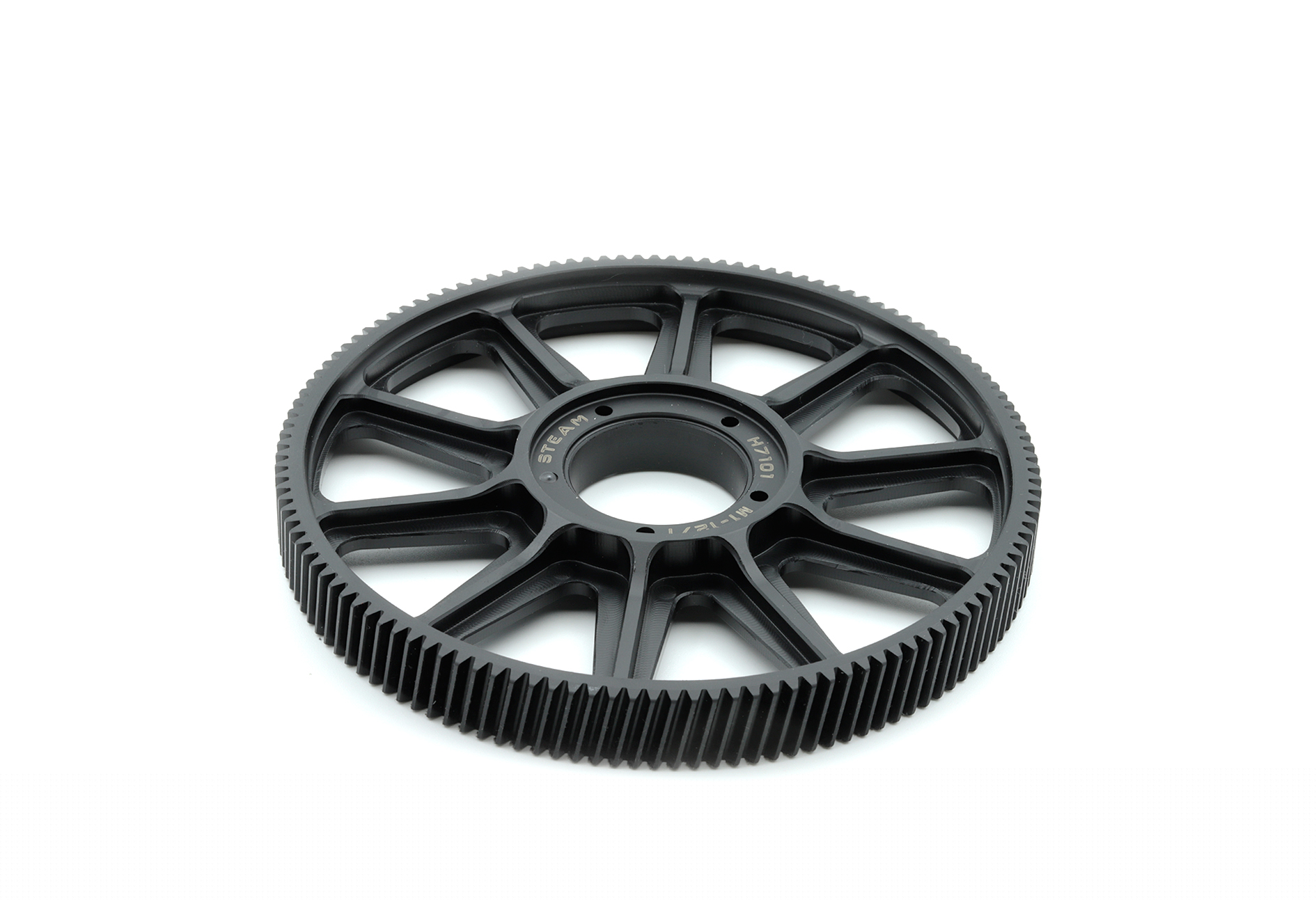

700 CNC Main Gear is suitable for Steam Armor 700 Helicopter main shaft one-way locking.It adopts FULL CNC machining of sisteel materials, high-precision CNC hobbing, and overall enhanced mortise and tenon design of large frame, bringing lighter and stronger structure.  Armor 700 is equipped with three kinds of main gear(125T/127T/T129T). It can better adapt to the motor with different KV values and give full play to the performance of the motor. Please refer to the last page of the manual for details. 127T is suitable for 12T、13T、14T motor gear, corresponding ratio is：10.58/9.77/9.07.

Attention: Please apply the oil in box when use. Effectively prevent main gear destroyed. 127T is suitable for 12T、13T、14T motor gear, corresponding ratio is：10.58/9.77/9.07.

Related Product Number：

700 CNC Main Gear/125T   H7101A

700 CNC Main Gear/127T   H7101B

700 CNC Main Gear/129T   H7101C

700 700 Main Gear Centre Mount Set  H7055

700 One-way Wedge Block Bearing/Include Steel Bushing  MK7005

700 Tail Drive Main Gear Set 95T  H7050

Specification：

700 CNC Main Gear/127T×1（Φ131.00×Φ30.5×15mm）
