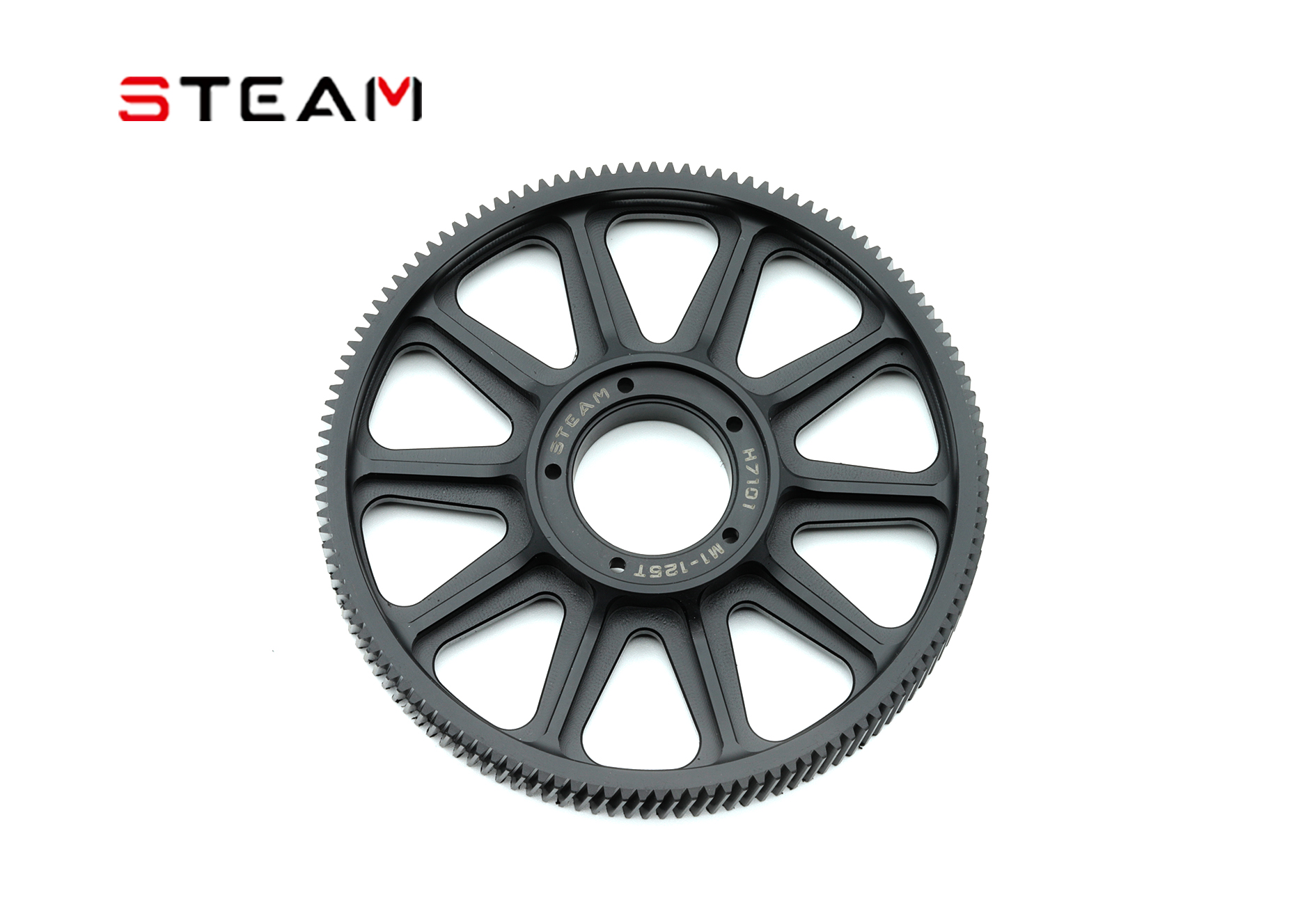

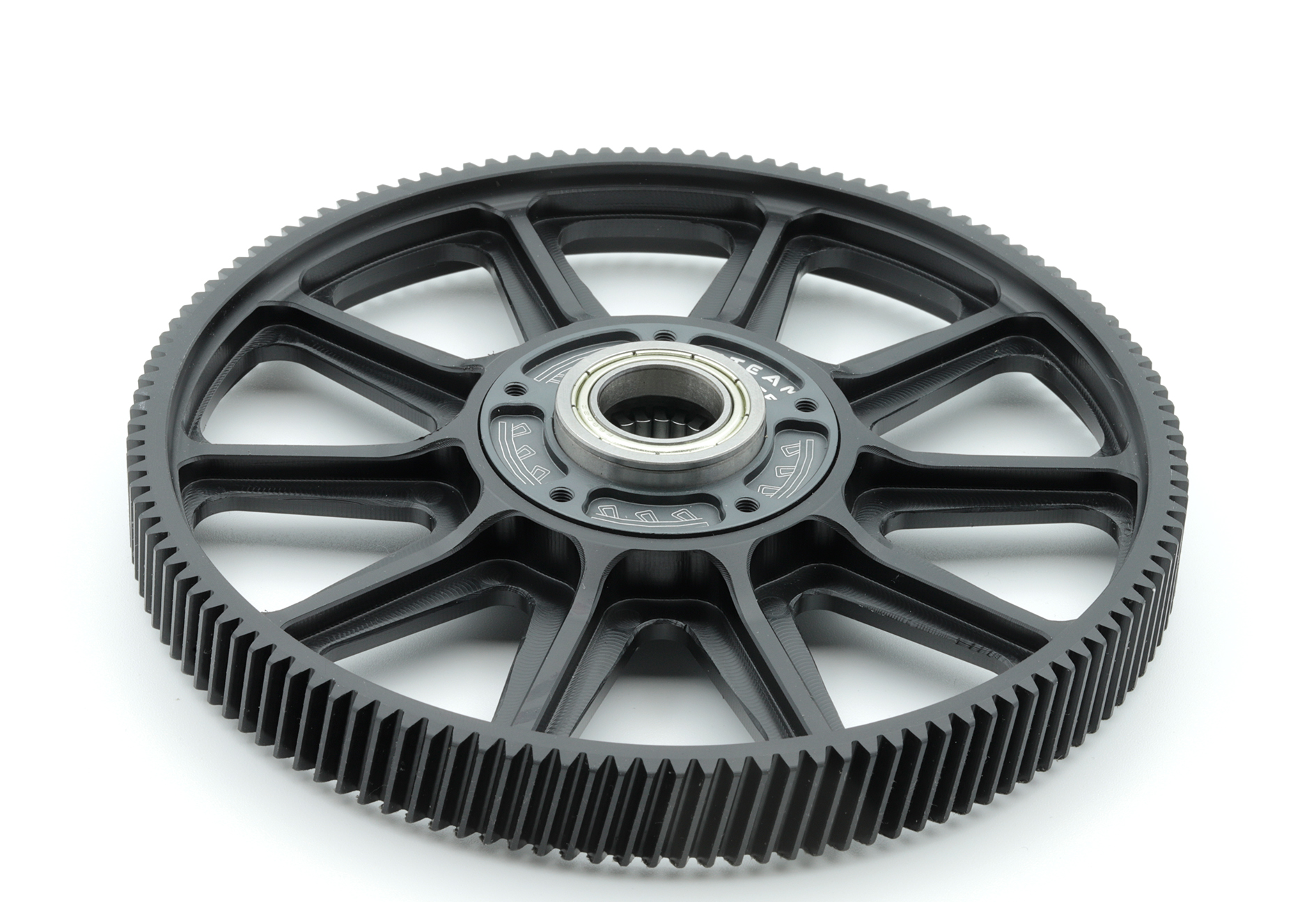

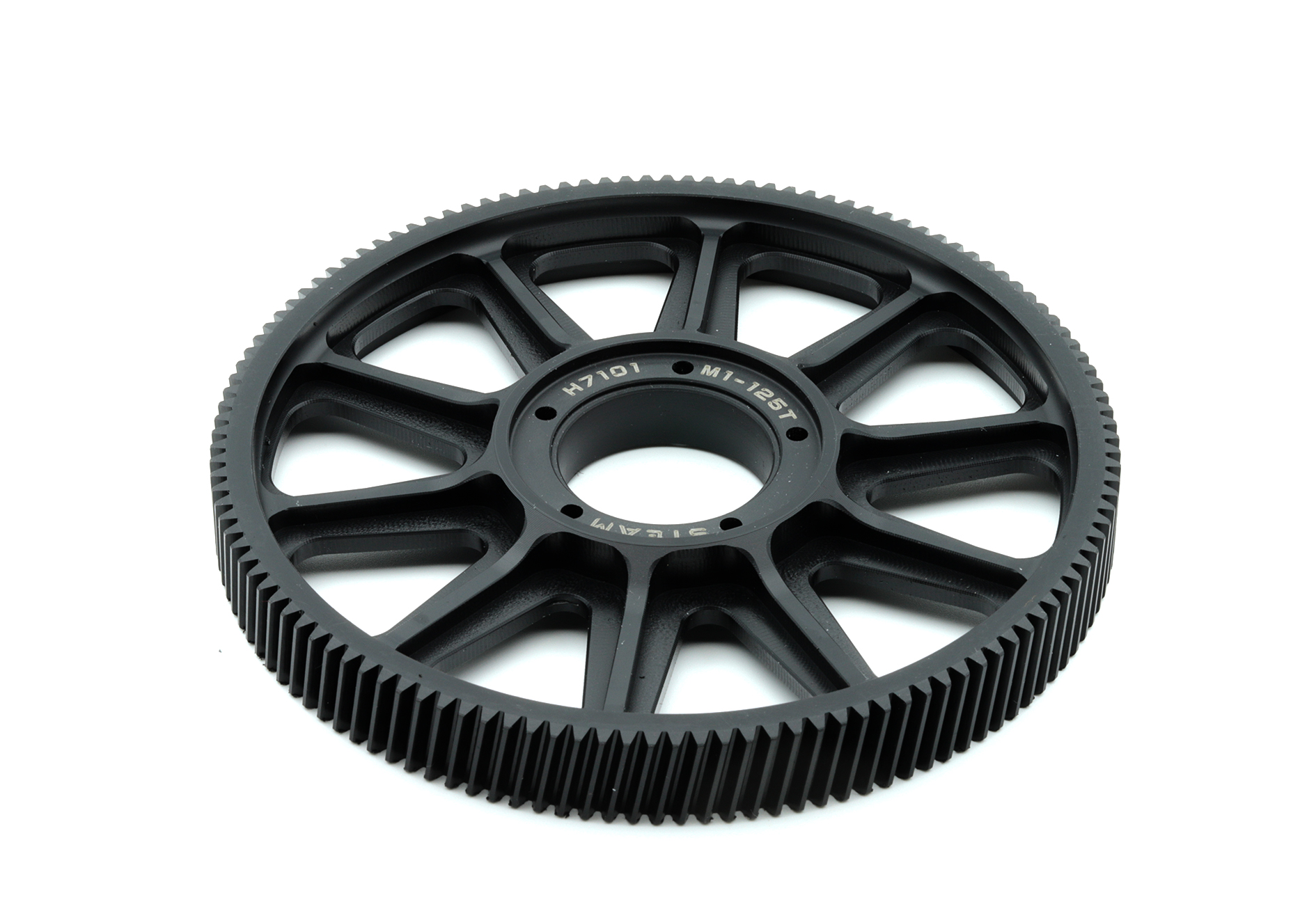

700 CNC Main Gear/125T H7101

    • Model: H7101
    • Colour:
    • Price: 120RMB
PRODUCT DETAILS

Description：

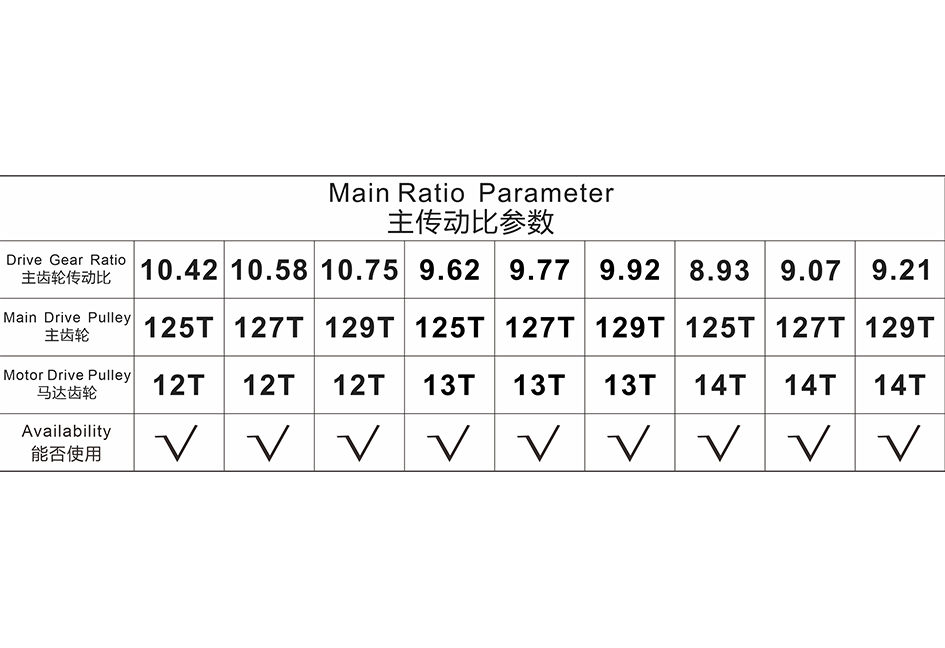

700CNC Main Gear is suitable for Steam Armor 700 Helicopter. All CNC machining with steel material, high precision CNC hobbing. Mortise and tenon design can lead to lighter and stronger construction. Armor 700 has 125T/127T/129T/ three main gears. Can better adapt to different KV value of the motor. Refer to the last page of the manual for details.

Related Product Number：

700 CNC Main Gear/125T   H7101

700 CNC Main Gear/127T   H7102

700 CNC Main Gear/129T   H7103

700 Main Gear Centre Mount Set  H7055

700 One-way Wedge Block Bearing/Include Steel Bushing  MK7005

700 Tail Drive Main Gear Set 95T  H7050

700 Motor Pinion Gear 12T  H7104

700 Motor Pinion Gear 13T  H7105

700 Motor Pinion Gear 14T  H7106



Specification：

700 CNC Main Gear/125T×1（Φ129.0×Φ30.5×15mm）
