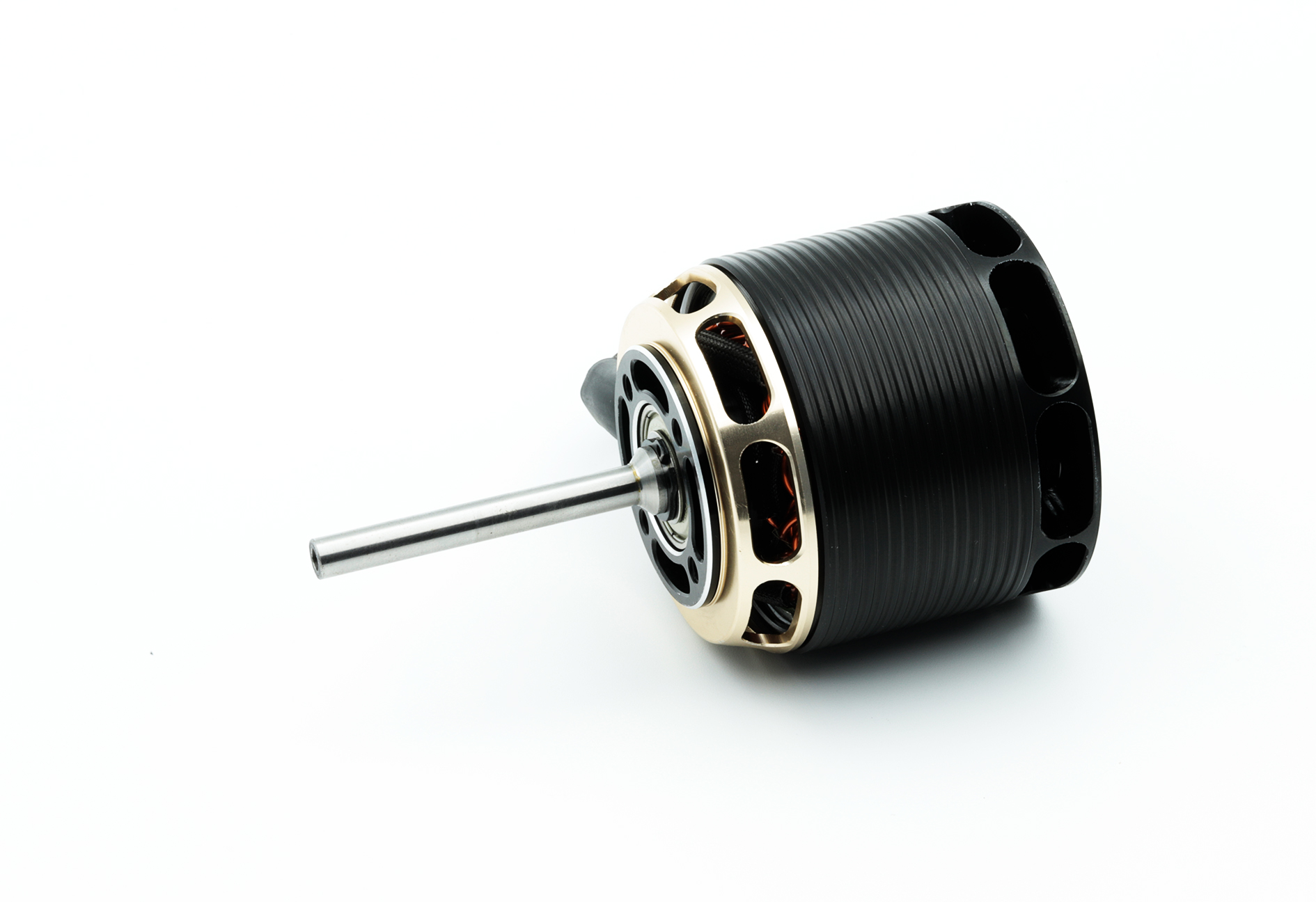

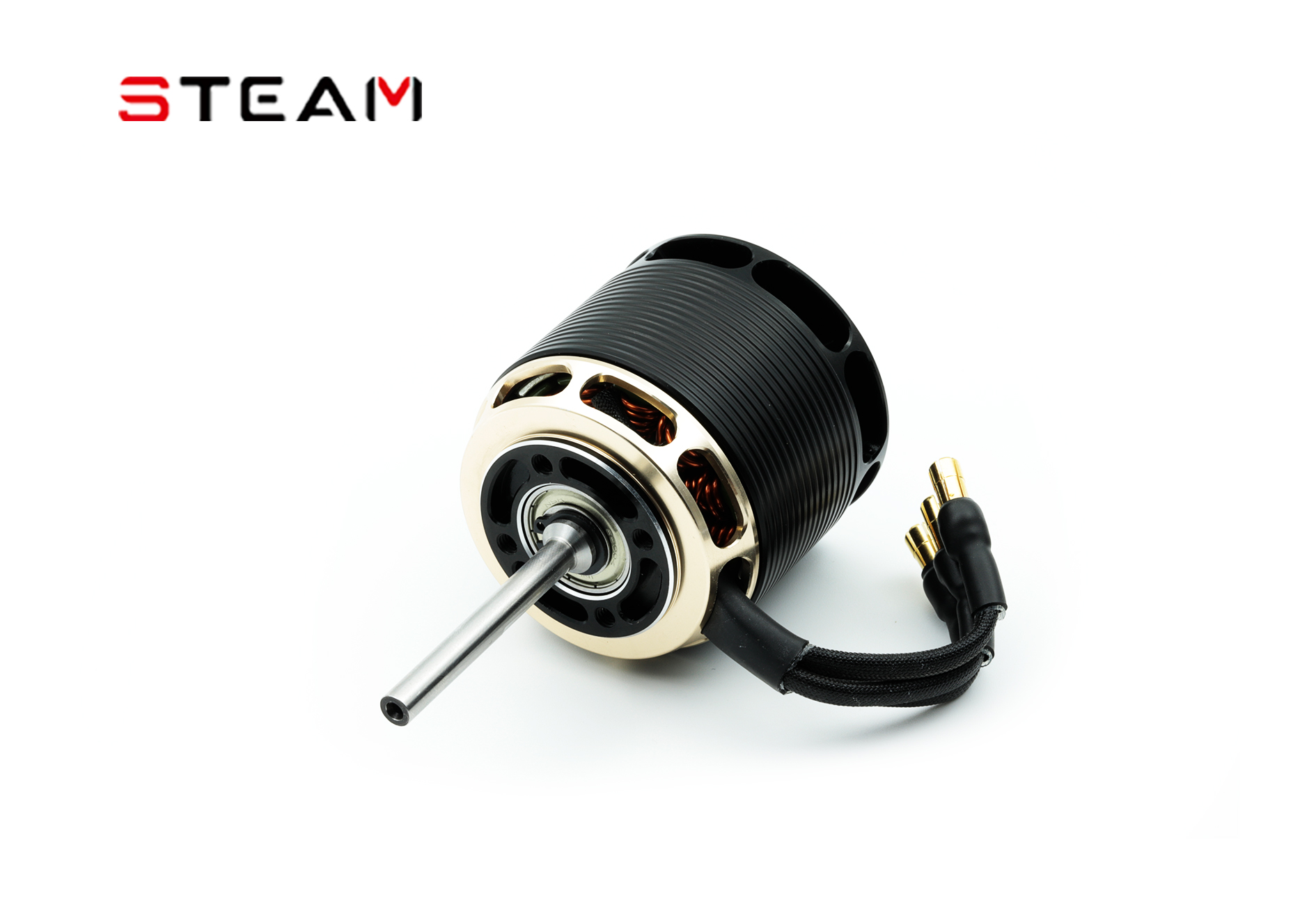

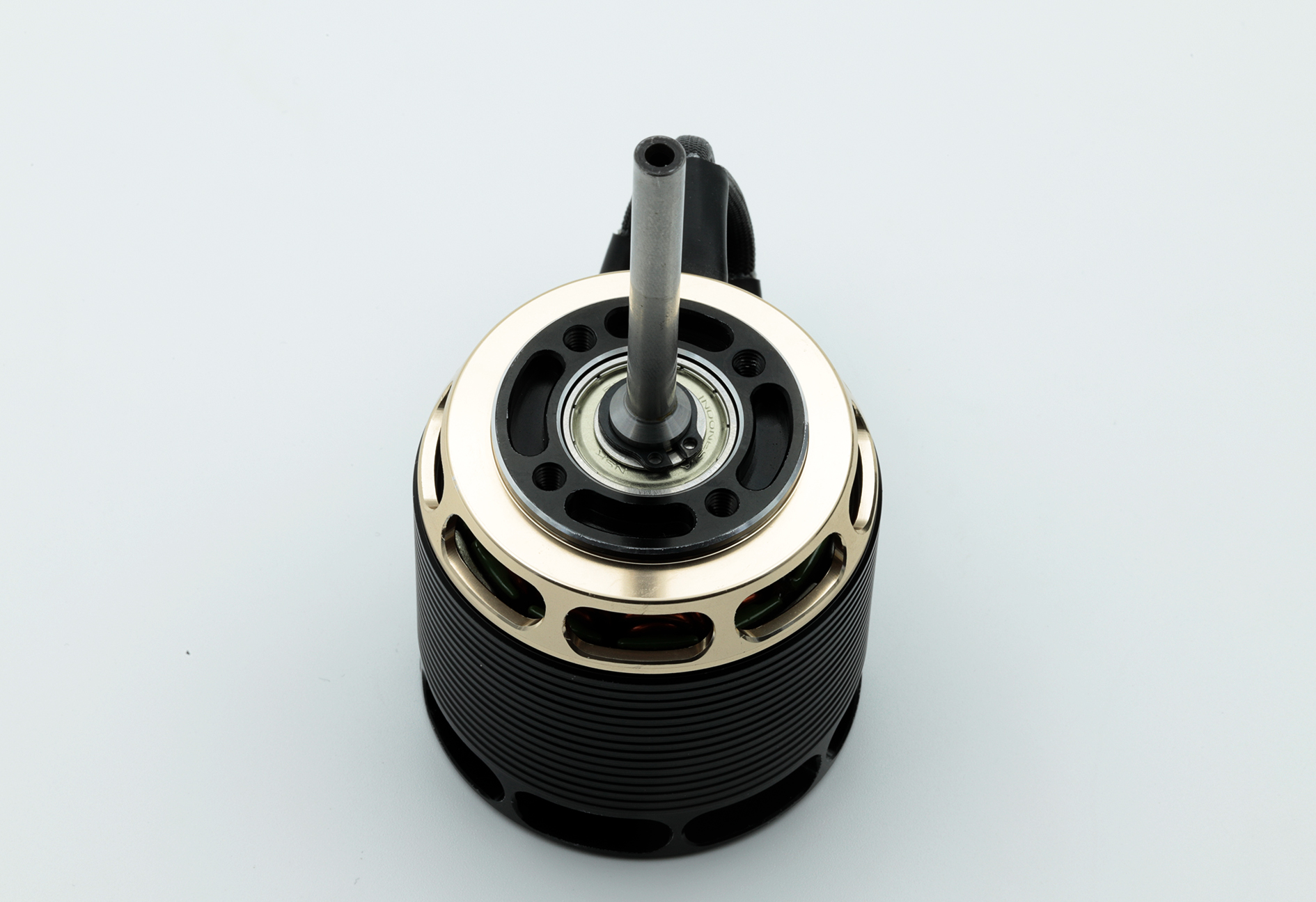

4730-520KV/Gold Fourth Generation Brushless Motor/Wire Diameter 1.5mm D4730
- Model: D4730
- Colour:
- Price: 1389RMB
Description：
4730-520KV/Gold Fourth Generation Brushless Motor is suitable for Steam Armor 700 Helicopter. Adopt aluminum alloy high precision nc machining. Unique three large size bearing design, 180 degree high quality Ndfeb magnetic, internal high efficiency active radiator, bring ultra-low temperature, effectively improve energy conversion efficiency.
Adopt 1.5mm single strand thick copper wire，7T+6T YY Precise winding，Pure hand-made high slot full rate winding, powerful power, but the vibration value is very small, can stand the coin on the plane, specially designed for the 700 level of racing helicopter standard power motor.
Related Product Number：
Steam 4035HS/12S/540KV MK6079
Steam 4035HS/6S/1090KV MK55023
Steam 4725-520KV/Gold Fourth Generation Brushless Motor/Wire Diameter 1.45mm MD4725
Steam 4730-520KVGold Fourth Generation Brushless Motor/Wire Diameter 1.5mm MD4730
Parameter：
| Stator Diameter | 47 mm |
| Stator Thickness | 30 mm |
| No. of Stator Arms | 12 |
| No. of Stator Poles | 10 |
| Motor Wind | 5+5Turn delta |
| Motor Wire | 1-Strand 1.5 mm |
| Motor Kv | 520KV RPM/Volt |
| No-Load Current (Io/10V) | 2.25 Amps |
| Motor Resistance (RM) | 0.0115 Ohms |
| Max Continuous Current | 120 Amps |
| Max Continuous Power | 5200 Watts |
| Weight | 550 Grams |

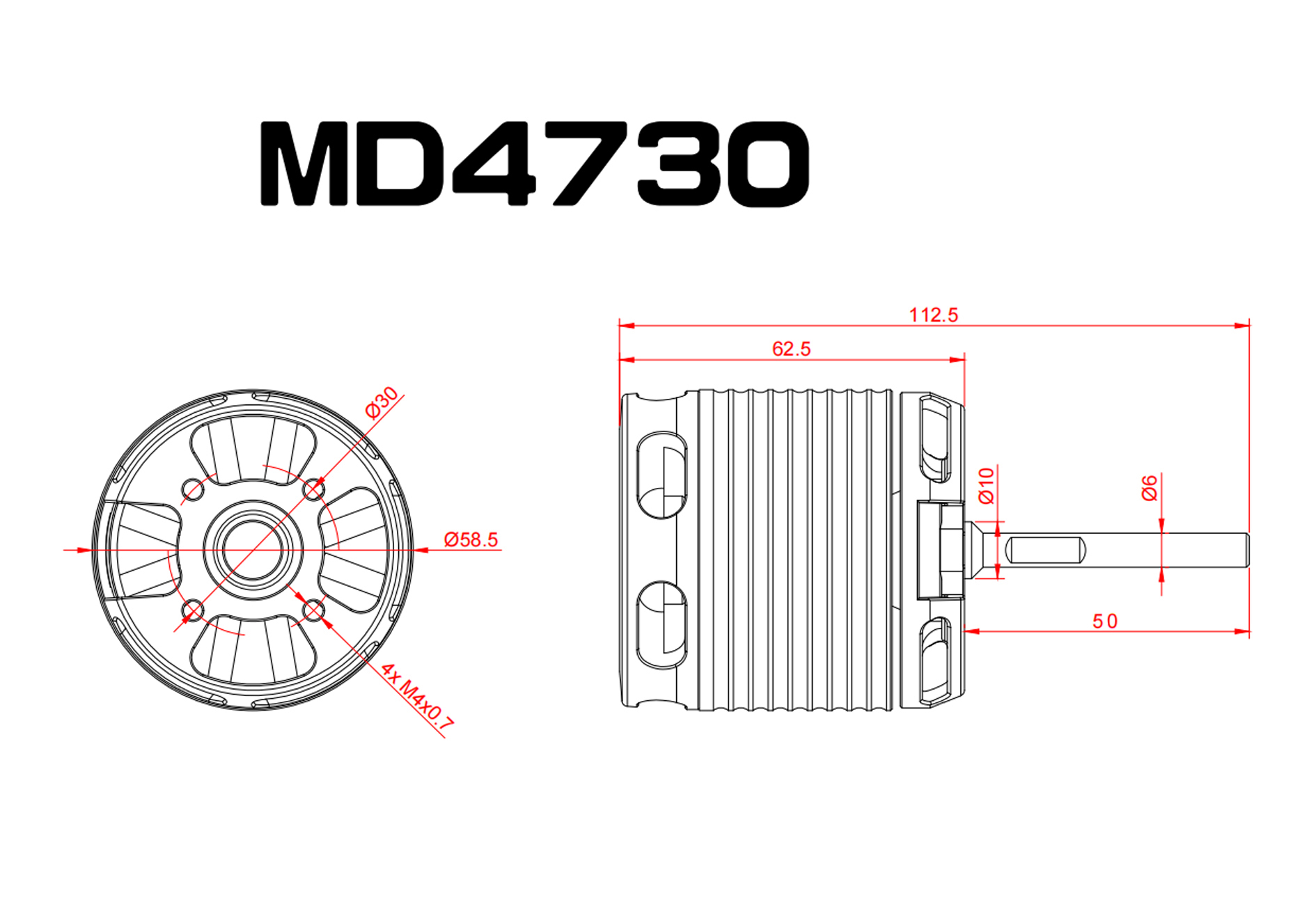

| Outside Diameter | 58.5 mm |
| Shaft Diameter | 6 mm |
| Body Length | 62.5 mm |
| Overall Shaft Length | 110 mm |
| Max Lipo Cell | 12s |
| Max Peak Current | 250A (2 seconds) |
| Max Peak Power | 12500 Watts (2 seconds) |
| Motor Timing | 5deg ~ 15 deg |
| Drive Frequency | 8kHz or 32kHz |
Specification：

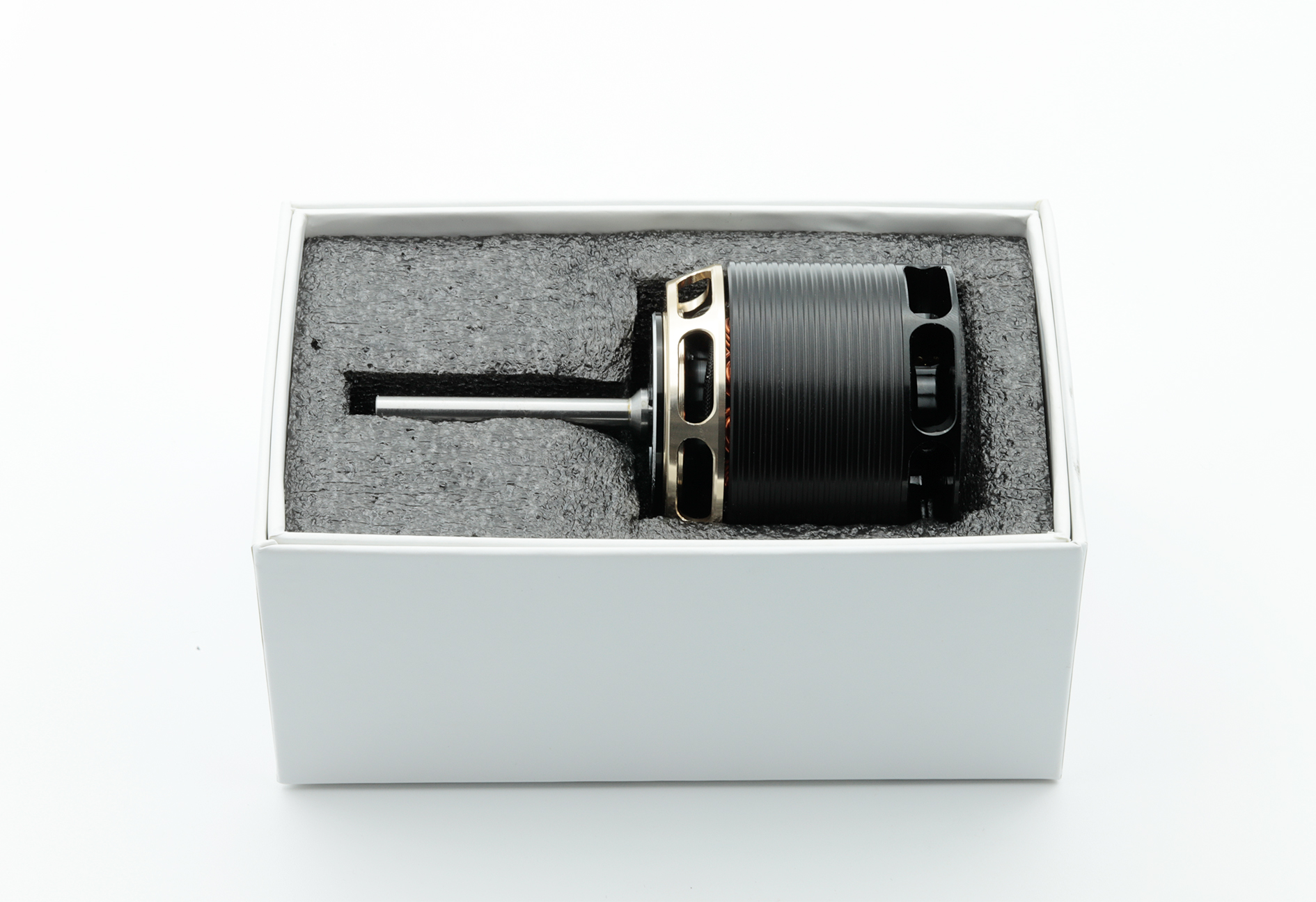

4730-520KV Brushless Motor/Wire Diameter1.55mm×1
M4×7.5mm Socket Screw×4
Φ7.0 Male Connector×3
Φ7.0 Female Connector×3
